Blu-Sub Subsea Optical Glass Flange & End-Cap (115 mm) Enclosure
Blu-Sub Mechatronics
- Manufacturer
- Blu-Sub Mechatronics
- Part number
- Confirmed on enquiry
- Category
- Enclosures

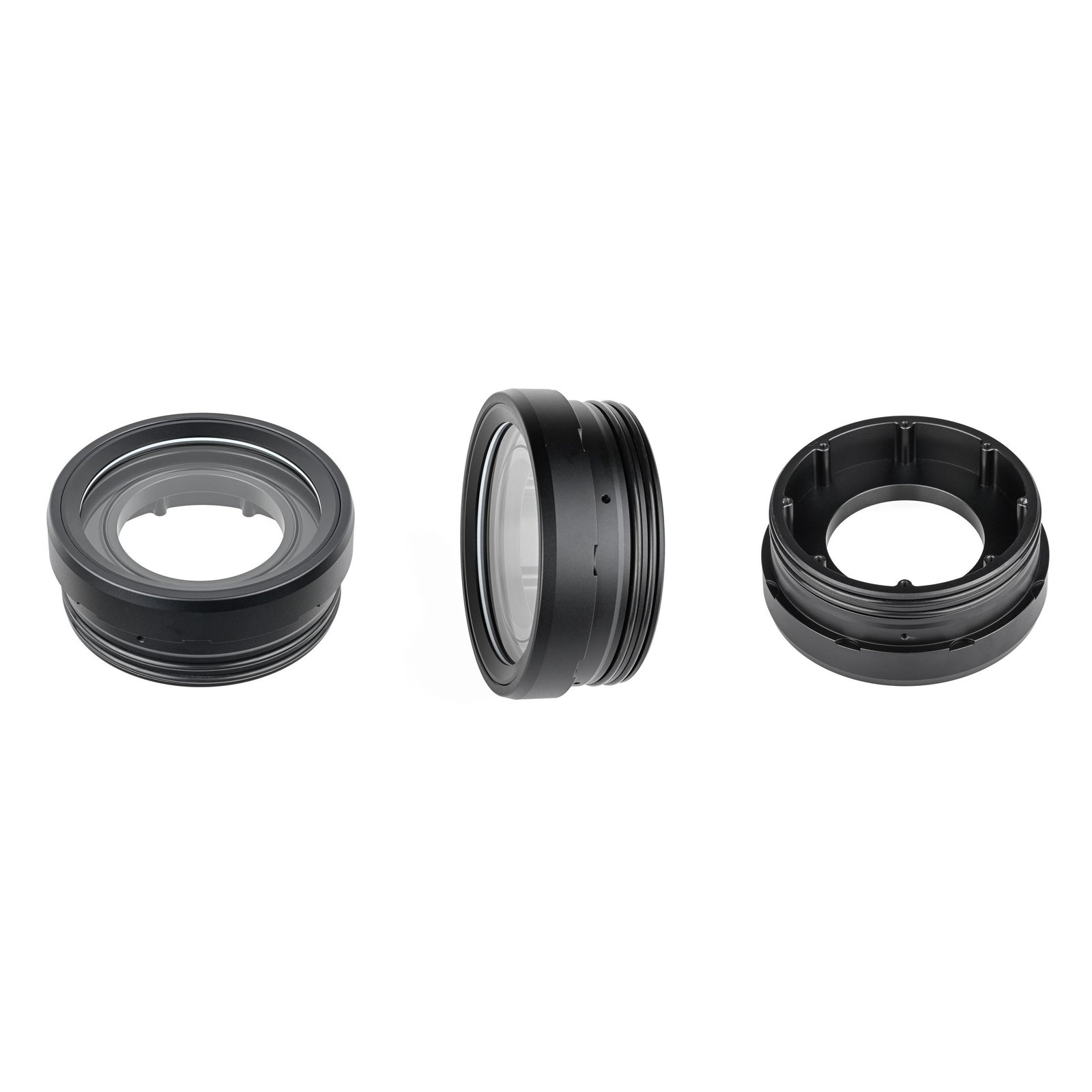

Subsea Optical Glass Flange & End-Cap (115 mm)
A precision underwater sealing component combining a hardened borosilicate glass viewing window with a black anodized aluminum flange, providing optical clarity and structural integrity for subsea vision systems rated to 300 m. One of the flange/end-cap options for the 115 mm pressure vessel (PV) tube family.
Specifications
| Product type | Flange and end cap |
| Depth Rating | 300 m / 984 ft |
| Material | Black anodized aluminum + tempered borosilicate glass |
| Weight | 559 g |
| Outer Diameter | 115 mm |
| Inner Diameter | 90 mm |
| Height | 46.5 mm |
| Viewing Diameter | 63 mm |
| Glass Thickness | 12 mm (Mohs 7 hardness) |
| Light Transmittance | 95% |
| Mounting Holes | 8 x M3 countersunk |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Underwater vision systems, camera housings, sensor payloads, inspection systems for ROVs and subsea robotics.
Compatible accessories
Subsea Enclosure Acrylic/Aluminum Tube; Electronic Tray Set for Enclosure Tube; MOLYKOTE 111 lubricant; spare O-ring set
Selection guides
How to choose between the options in this category, and what to check before ordering.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
What is its depth rating?
300 m / 984 ft.
How much does it weigh?
559 g.
What is it made from?
Black anodized aluminum + tempered borosilicate glass.
How is it mounted?
8 x M3 countersunk.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Subsea Optical Glass Flange & End-Cap (115 mm) Enclosure are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Subsea Optical Glass Flange & End-Cap (115 mm) Enclosure across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Enclosures
Enclosures selection guide & comparison →Goes with this
Other parts in this category. These are not alternatives to the part above — they are what it is installed alongside.
Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Blu-Sub Mechatronics distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare end caps and flanges
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Depth Rating | Weight | Inner Diameter | Outer Diameter | Product type |
|---|---|---|---|---|---|
| Subsea Optical Glass Flange & End-Cap (115 mm) this page | 300 m / 984 ft | 559 g | 90 mm | 115 mm | Flange and end cap |
| Subsea Optical Dome End-Cap | 1,000 m / 3,280 ft | 92 g dome / 160 g with ring | 86 mm | 103.4 mm | End cap |
| Subsea Polymer Flange & End-Cap | 30 m / 98 ft (sealed, tested) | 161 g (188 g shipped) | — | 115 mm | Flange and end cap |
| Subsea Acrylic End-Cap | 300 m (85mm) / 200 m (115mm) / 50 m (165mm) | 46-195 g depending on size | — | — | End cap |
| Subsea Aluminum End-Cap | 1,000 m / 3,281 ft | 79-340 g depending on size | — | — | End cap |
| Subsea Aluminum Flange | 1,000 m / 3,281 ft | 116 g (85mm), 190 g (115mm), 276 g (165mm) | — | — | Flange |
