Blu-Sub Electronic Tray Set for Enclosure Tube
Blu-Sub Mechatronics
- Manufacturer
- Blu-Sub Mechatronics
- Part number
- Confirmed on enquiry
- Category
- Enclosures

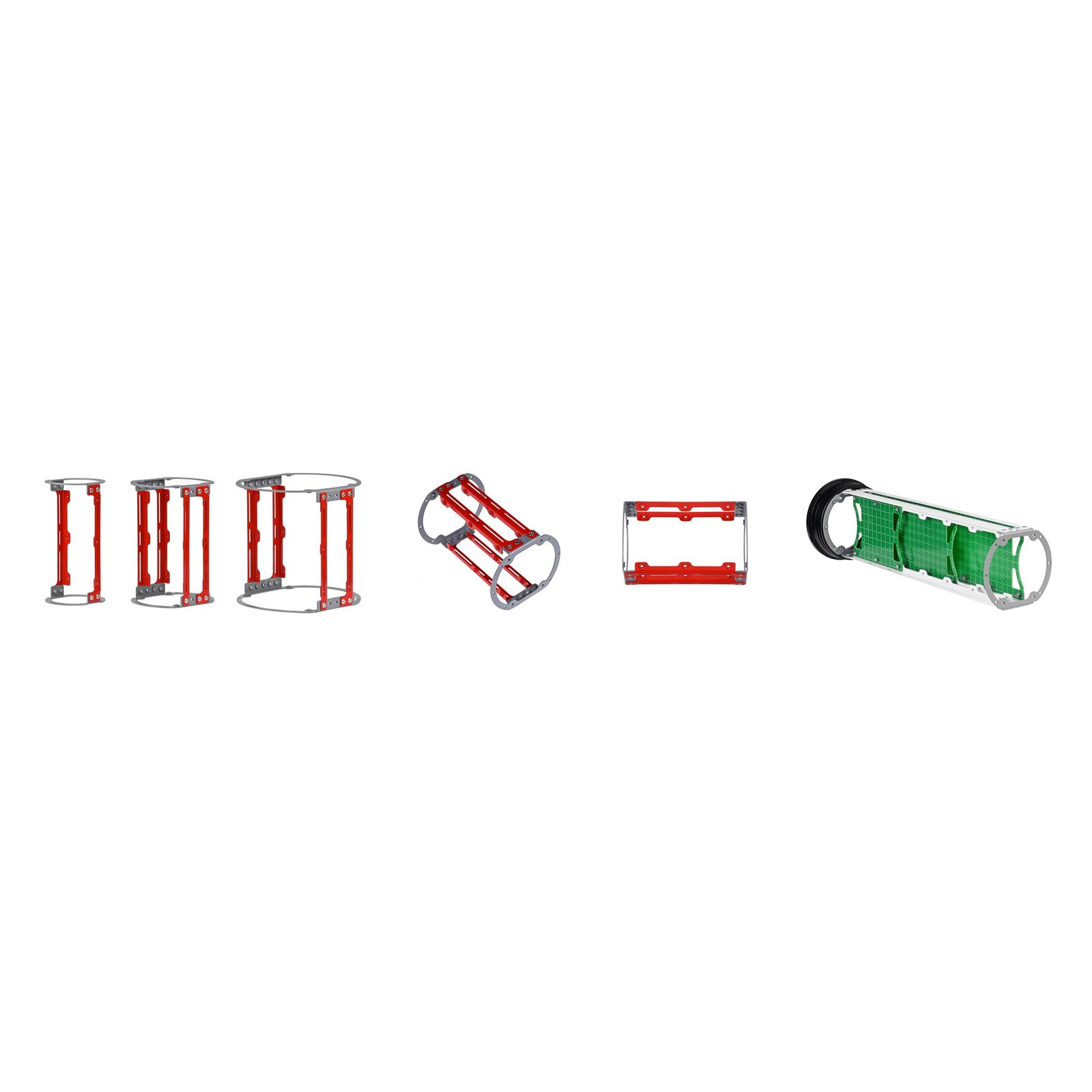

Electronic Tray Set for Enclosure Tube
An internal mounting solution for organizing electronics inside subsea enclosure tubes. The set includes tray shelf supports with pre-tapped holes plus two base mounts and screws, constructed from plastic-sprayed cold-rolled steel for corrosion resistance. Sold in diameters matching Blu-Sub's acrylic and aluminum enclosure tubes.
Specifications
| Product type | Internal tray |
| Material | Plastic-sprayed cold-rolled steel |
| Weight | 82-294 g depending on diameter/length |
| Available Diameters | 85 mm, 115 mm, 165 mm |
| Available Lengths | 200, 250, 300, 350, 400 mm |
| Screw Type | Flat-head PH1 Phillips (included) |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Internal electronics tray/shelf mounting inside subsea pressure vessel enclosure tubes.
Compatible accessories
Insulated PCB Board Shelf for Enclosure Tube; Enclosure Tray Shelf Support (Single-Point); Subsea Aluminum Flange; Subsea Enclosure Acrylic/Aluminum Tubes; Subsea Optical Glass & Polymer Flanges
Selection guides
How to choose between the options in this category, and what to check before ordering.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
How much does it weigh?
82-294 g depending on diameter/length.
What is it made from?
Plastic-sprayed cold-rolled steel.
Which sizes are available?
200, 250, 300, 350, 400 mm.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Electronic Tray Set for Enclosure Tube are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Electronic Tray Set for Enclosure Tube across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Enclosures
Enclosures selection guide & comparison →Goes with this
Other parts in this category. These are not alternatives to the part above — they are what it is installed alongside.
Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Blu-Sub Mechatronics distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare enclosure fit-out parts
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Weight | Material | Available Lengths | Product type |
|---|---|---|---|---|
| Electronic Tray Set for Enclosure Tube this page | 82-294 g depending on diameter/length | Plastic-sprayed cold-rolled steel | 200, 250, 300, 350, 400 mm | Internal tray |
| Enclosure Tray Shelf Support (Single-Point) | 41-101 g depending on length | Cold-rolled steel plate, spray coated | 200, 250, 300, 350, 400 mm | Internal tray |
| Insulated PCB Board Shelf for Enclosure Tube | 16-179 g depending on diameter/length | Green double-sided insulated PCB material | 200, 250, 300, 350, 400 mm | Internal tray |
| Aluminum Tube Enclosure Mounting Plate | 82 g (wide) / 19 g (narrow) | Black anodized aluminum | — | Enclosure mounting hardware |
| Subsea Acrylic Tube Clamp Set | 170 g (85mm), 198 g (115mm), 295 g (165mm) | Black anodized aluminum | — | Enclosure mounting hardware |
