Blu-Sub Insulated PCB Board Shelf for Enclosure Tube Internal Tray
Blu-Sub Mechatronics
- Manufacturer
- Blu-Sub Mechatronics
- Part number
- BS-ELE-PCBET-XXX-A1A1
- Category
- Enclosures

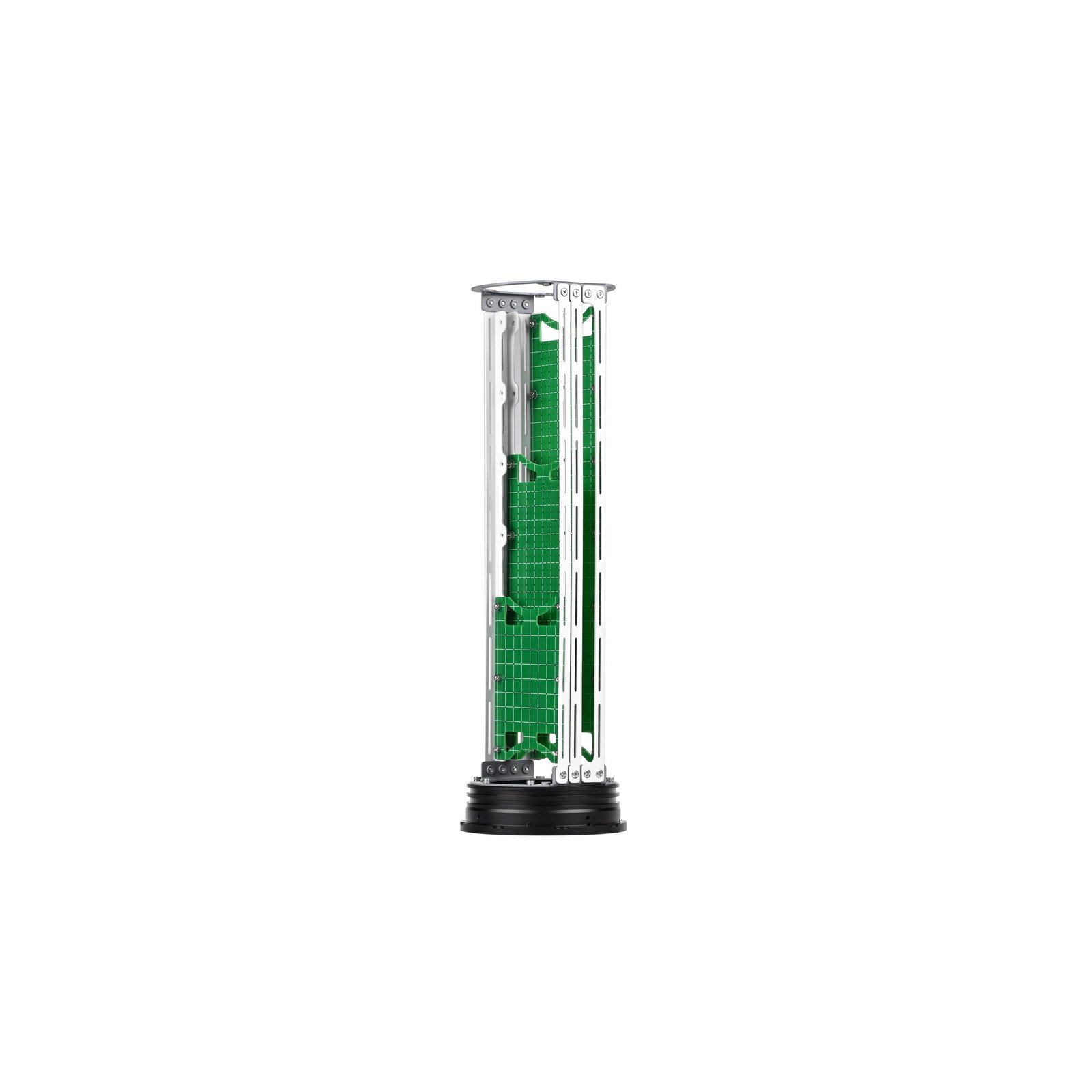

Insulated PCB Board Shelf for Enclosure Tube
A green, double-sided, electrically insulated PCB-material board that serves as a mounting platform for electronics inside subsea enclosure tubes. Pre-marked holes simplify drilling for component installation and cable routing, and the board also functions as a reference layer for planning internal device placement.
Specifications
| SKU | BS-ELE-PCBET-XXX-A1A1 |
| Product type | Internal tray |
| Material | Green double-sided insulated PCB material |
| Weight | 16-179 g depending on diameter/length |
| Compatible Tube Diameters | 85 mm, 115 mm, 165 mm (internal) |
| Available Lengths | 200, 250, 300, 350, 400 mm |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Insulated internal mounting shelf for PCBs and electronics inside acrylic or aluminum subsea enclosure tubes.
Compatible accessories
Enclosure Tray Shelf Support (Single-Point); Electronic Tray Set for Enclosure Tube; Subsea Enclosure Aluminum/Acrylic Tube. Shelf supports and base mounts sold separately.
Selection guides
How to choose between the options in this category, and what to check before ordering.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
How much does it weigh?
16-179 g depending on diameter/length.
What is it made from?
Green double-sided insulated PCB material.
Which sizes are available?
200, 250, 300, 350, 400 mm.
What is the manufacturer part number?
Blu-Sub Mechatronics lists it as BS-ELE-PCBET-XXX-A1A1. Quote that number on an enquiry and we will match it exactly.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Insulated PCB Board Shelf for Enclosure Tube Internal Tray are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Insulated PCB Board Shelf for Enclosure Tube Internal Tray across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Enclosures
Enclosures selection guide & comparison →Goes with this
Other parts in this category. These are not alternatives to the part above — they are what it is installed alongside.
Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Blu-Sub Mechatronics distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare enclosure fit-out parts
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Weight | Material | Compatible Tube Diameters | Available Lengths | Product type |
|---|---|---|---|---|---|
| Insulated PCB Board Shelf for Enclosure Tube this page | 16-179 g depending on diameter/length | Green double-sided insulated PCB material | 85 mm, 115 mm, 165 mm (internal) | 200, 250, 300, 350, 400 mm | Internal tray |
| Enclosure Tray Shelf Support (Single-Point) | 41-101 g depending on length | Cold-rolled steel plate, spray coated | 85 mm, 115 mm, 165 mm | 200, 250, 300, 350, 400 mm | Internal tray |
| Electronic Tray Set for Enclosure Tube | 82-294 g depending on diameter/length | Plastic-sprayed cold-rolled steel | — | 200, 250, 300, 350, 400 mm | Internal tray |
| Aluminum Tube Enclosure Mounting Plate | 82 g (wide) / 19 g (narrow) | Black anodized aluminum | — | — | Enclosure mounting hardware |
| Subsea Acrylic Tube Clamp Set | 170 g (85mm), 198 g (115mm), 295 g (165mm) | Black anodized aluminum | — | — | Enclosure mounting hardware |
