Aluminum Tube Enclosure Mounting Plate

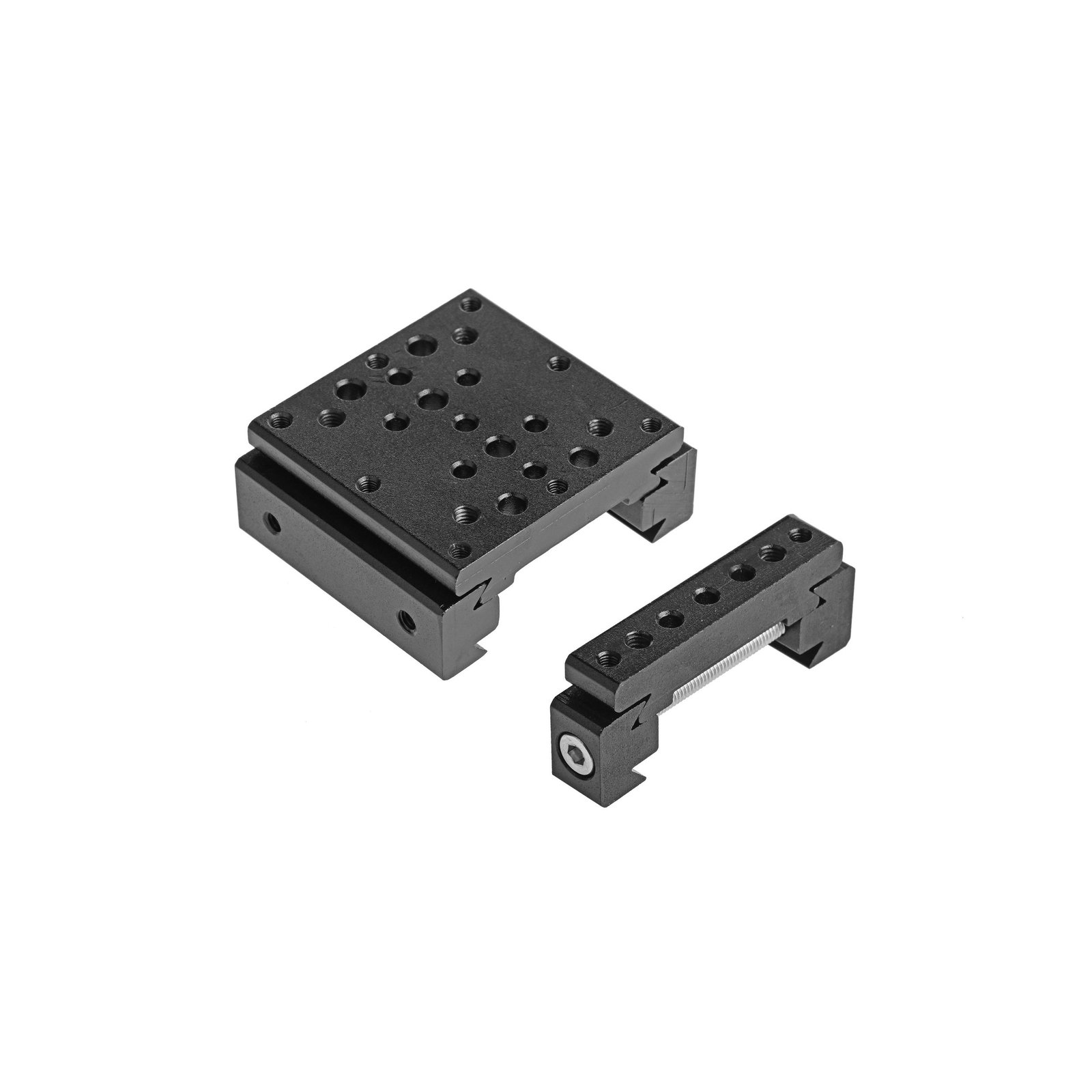

A black anodized aluminum mounting plate for securing Blu-Sub subsea aluminum enclosure tubes to Arca-Swiss rail systems. It provides a firm-mount interface for ROV frames, sensor pods, and exploration equipment, with dual screw channels allowing forward or reverse installation. Compatible across all Blu-Sub aluminum tube diameters.
Specifications
| Product type | Enclosure mounting hardware |
| Material | Black anodized aluminum |
| Weight | 82 g (wide) / 19 g (narrow) |
| Versions | Wide (46 mm) and Narrow (10 mm) |
| Fasteners | M4 screws for Arca-Swiss rail; M3/M4 mounting holes |
| Included Components | 1 mounting base, 2 clamp blocks, screws |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Mounting/securing aluminum enclosure tubes to ROV frames and rigs via a standardized Arca-Swiss rail interface.
Compatible accessories
Subsea Enclosure Aluminum Tube (all sizes)
Selection guides
How to choose between the options in this category, and what to check before ordering.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
How much does it weigh?
82 g (wide) / 19 g (narrow).
What is it made from?
Black anodized aluminum.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Aluminum Tube Enclosure Mounting Plate Hardware are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Aluminum Tube Enclosure Mounting Plate Hardware across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
