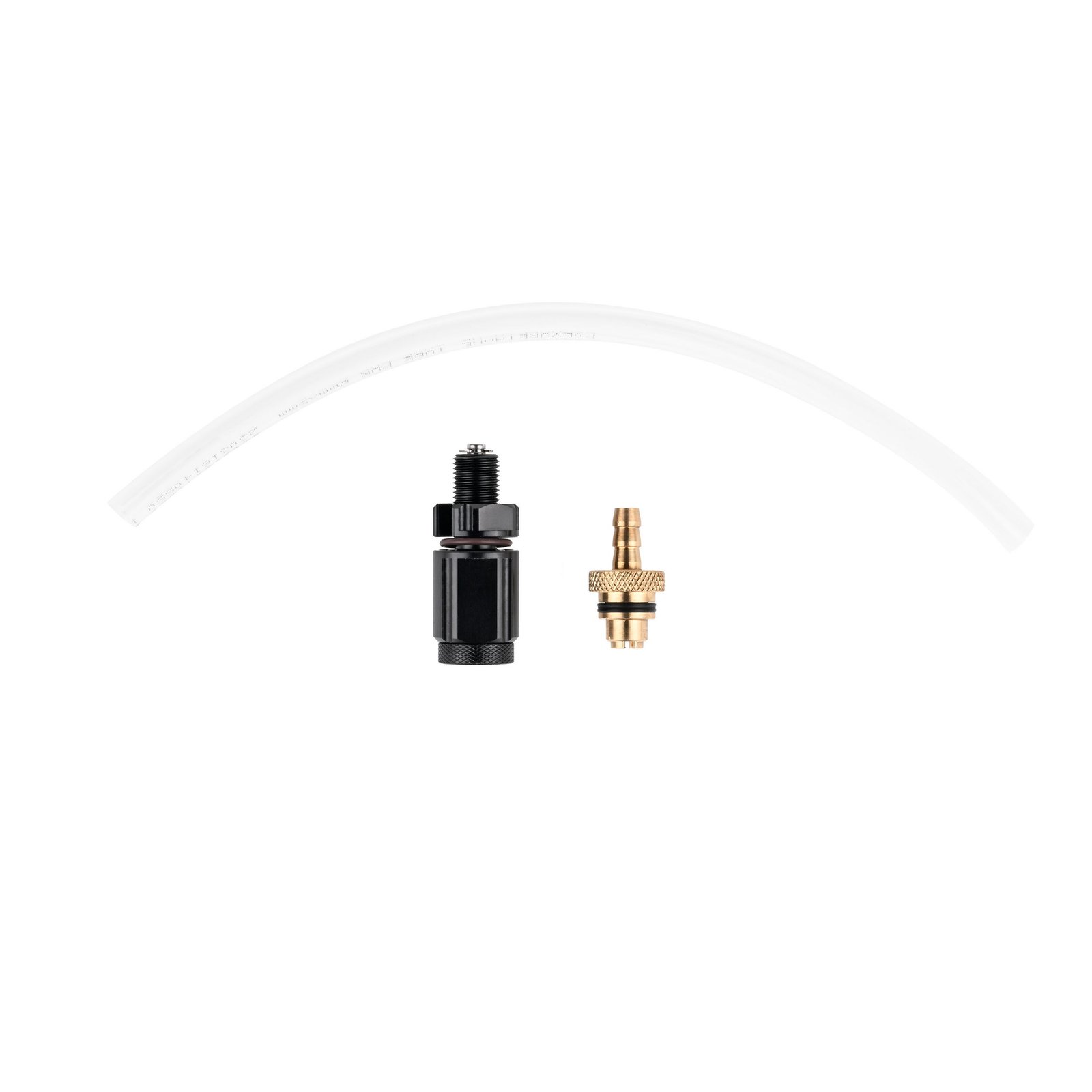

Blu-Sub Subsea M10 Self-Sealing Vent & Vacuum Plug
Blu-Sub Mechatronics
- Manufacturer
- Blu-Sub Mechatronics
- Part number
- BS-SSC-SSVPL-BLK-10A1
- Category
- Enclosures
Subsea M10 Self-Sealing Vent & Vacuum Plug
A vacuum vent/plug for leak testing and maintaining internal negative pressure in subsea enclosures. Its self-sealing design uses an internal valve and lock cap that preserves vacuum state after the pump disconnects, preventing condensation and helping monitor slow pressure shifts over time -- a step up from the simpler M8 model.
Specifications
| SKU | BS-SSC-SSVPL-BLK-10A1 |
| Product type | Vent and vacuum plug |
| Depth Rating | 1,000 m / 3,280 ft |
| Mounting Hole | 10.1 +/- 0.1 mm |
| Material | Copper plug; aluminum body; plastic lock cap |
| Weight | 45 g |
| O-ring Size | 12 x 1.5 mm (FKM75) |
| Hose Diameter | 5 mm ID / 8 mm OD |
| Panel Thickness | 13 mm recommended |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Long-term vacuum retention, deep-water deployment, and pressure monitoring for subsea enclosures without a continuously attached pump.
Compatible accessories
Subsea Watertight Enclosure Box; Subsea Enclosure Acrylic/Aluminum Tubes; Aluminum/Acrylic End-Caps with M10 ports; Universal M8/M10 Installation Wrench; MOLYKOTE 111 lubricant; spare O-ring sets
Selection guides
How to choose between the options in this category, and what to check before ordering.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
What is its depth rating?
1,000 m / 3,280 ft.
How much does it weigh?
45 g.
What is it made from?
Copper plug; aluminum body; plastic lock cap.
How is it mounted?
10.1 +/- 0.1 mm.
What is the manufacturer part number?
Blu-Sub Mechatronics lists it as BS-SSC-SSVPL-BLK-10A1. Quote that number on an enquiry and we will match it exactly.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Subsea M10 Self-Sealing Vent & Vacuum Plug are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Subsea M10 Self-Sealing Vent & Vacuum Plug across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Enclosures
Enclosures selection guide & comparison →Goes with this
Other parts in this category. These are not alternatives to the part above — they are what it is installed alongside.
Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Blu-Sub Mechatronics distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare vent and vacuum plugs
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Depth Rating | Weight | Material | Product type | O-ring Size |
|---|---|---|---|---|---|
| Subsea M10 Self-Sealing Vent & Vacuum Plug this page | 1,000 m / 3,280 ft | 45 g | Copper plug; aluminum body; plastic lock cap | Vent and vacuum plug | 12 x 1.5 mm (FKM75) |
| Subsea M8 Vent & Vacuum Plug | 1,000 m / 3,280 ft | 12 g (vent) / 13 g (plug) | Aluminum + stainless steel (vent); copper (plug) | Vent and vacuum plug | 10 x 1.5 mm (FKM75) |
