Blu-Sub Toggle Relay Control Module (BS-ELE-PBR12-XXX-16A1 / BS-ELE-PBR24-XXX-16A1) Subsea Switch
Blu-Sub Mechatronics
- Manufacturer
- Blu-Sub Mechatronics
- Part number
- Confirmed on enquiry
- Category
- Switches & Potentiometers

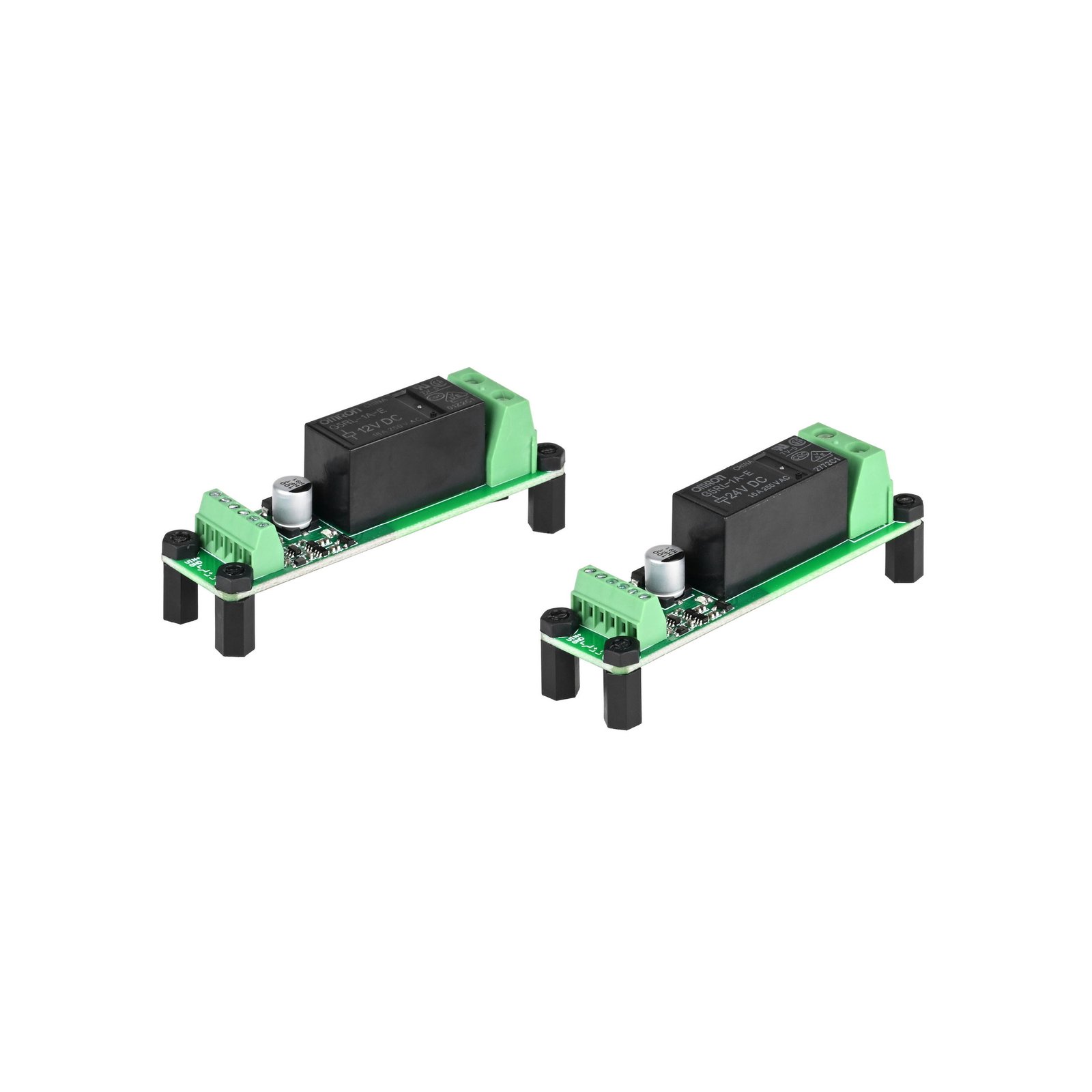

Toggle Relay Control Module (BS-ELE-PBR12-XXX-16A1 / BS-ELE-PBR24-XXX-16A1)
An electronic module that converts momentary switch signals into latched outputs: a single tap activates a connected device and a second tap deactivates it. It includes debounce protection, long-press shutoff, reverse-polarity protection, and a status LED, letting a momentary switch (such as the Subsea M10 Tap Switch) drive a latched load.
Specifications
| Product type | Switching board |
| Rated Current | 12V: 50 mA; 24V: 30 mA |
| Dimensions | 72 x 20 x 20 mm |
| Weight | ~22 g |
| Supply Voltage (12V model) | 9.6-12.6 V (3S battery) |
| Supply Voltage (24V model) | 19.2-25.2 V (6S battery) |
| Max Switching Current | 16 A |
| Contact Type | SPST-NO |
| Button Debounce Delay | 30 ms |
| Long-Press Shutoff | 1 second |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Adding latched on/off control to ROV lighting, pumps, solenoids, and other underwater systems driven by a momentary switch; also suited to magnetically sensitive environments.
Compatible accessories
Subsea M10 Tap Switch (Non-Latching), Subsea Embedded Push Button Switch (Non-Magnetic), Subsea Dimmable LED Light, Subsea M10 Signal Indicator.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
How much does it weigh?
~22 g.
What are its dimensions?
72 x 20 x 20 mm.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Toggle Relay Control Module (BS-ELE-PBR12-XXX-16A1 / BS-ELE-PBR24-XXX-16A1) Subsea Switch are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Toggle Relay Control Module (BS-ELE-PBR12-XXX-16A1 / BS-ELE-PBR24-XXX-16A1) Subsea Switch across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Switches & Potentiometers
All Switches & Potentiometers in the catalogue →Goes with this
Other parts in this category. These are not alternatives to the part above — they are what it is installed alongside.
Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Blu-Sub Mechatronics distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare switching boards
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Weight | Dimensions | Product type |
|---|---|---|---|
| Toggle Relay Control Module (BS-ELE-PBR12-XXX-16A1 / BS-ELE-PBR24-XXX-16A1) this page | ~22 g | 72 x 20 x 20 mm | Switching board |
| MOS Low-Side Switch Board (BS-ELE-MOSLS series) | 15A: 12.6 g; 30A: 48.4 g; 120A: 282.5 g | 15A: 35x30 mm; 30A: 42x52 mm; 120A: 81.2x60 mm | Switching board |
