Blu-Sub Subsea Dimmable LED Light (1500 Lumens / 6000K)
Blu-Sub Mechatronics
- Manufacturer
- Blu-Sub Mechatronics
- Part number
- Confirmed on enquiry
- Category
- Lighting
Subsea Dimmable LED Light (1500 Lumens / 6000K)
A high-performance underwater LED light built for subsea lighting on ROVs, USVs, and robotics platforms, delivering 1,500 lumens of 6,000K daylight-balanced output with PWM dimming control. Machined from corrosion-resistant aluminum alloy with a seamless, screw-free exterior and an industrial-grade tempered glass lens compatible with standard 25 mm filters.
Specifications
| Product type | Underwater light |
| Depth Rating | 1,000 m / 3,281 ft (recommended under 800 m for continuous use) |
| Power | 17 W maximum |

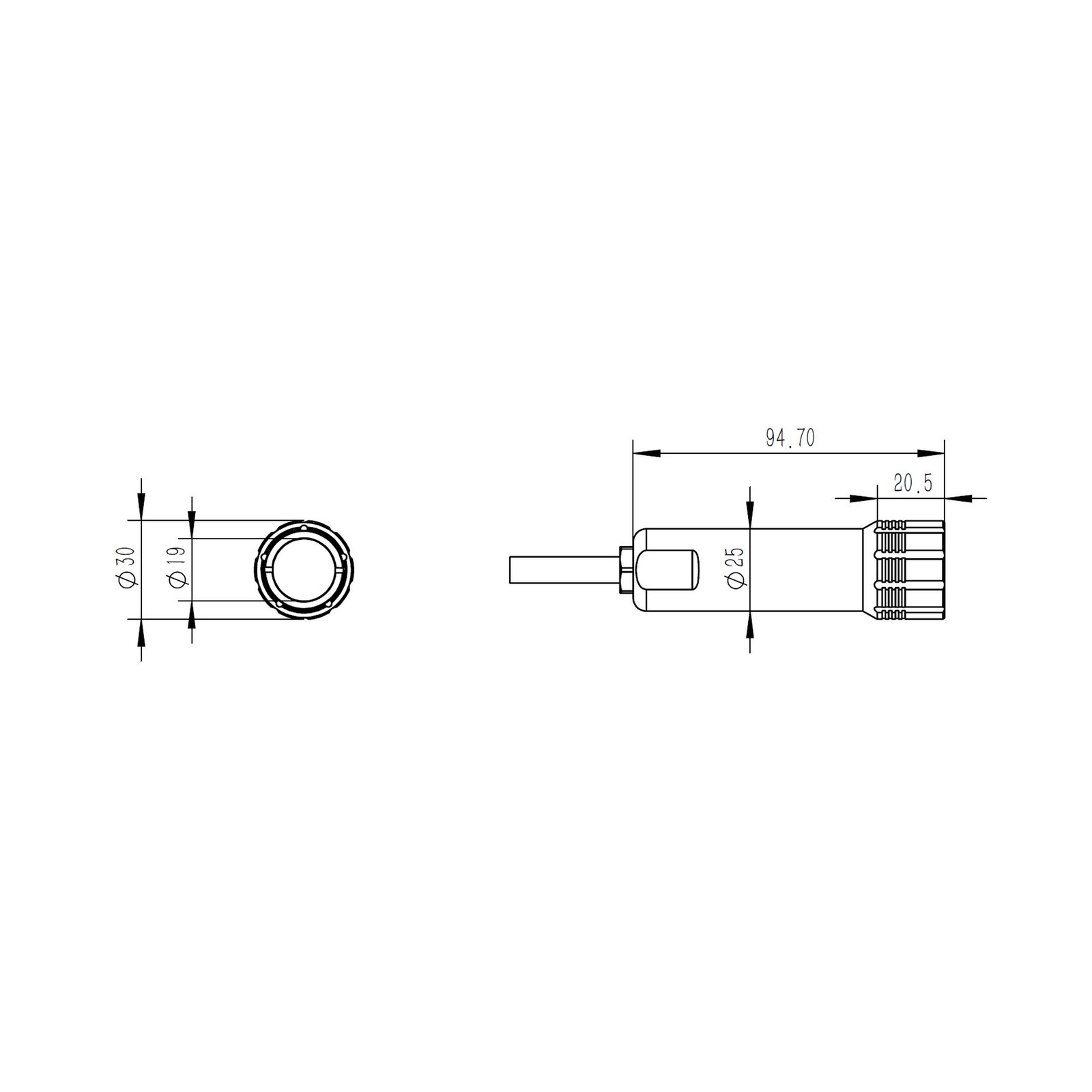

| Dimensions | 98 mm length x 30 mm diameter |
| Material | Anodized aluminum alloy |
| Weight | 168 g |
| Operating Temperature | -10 to 60 C |
| Input Voltage | 10-28 V |
| Brightness | 1,500 lumens |
| Color Temperature | 6,000 K |
| CRI | 74 |
| Beam Angle | ~90 degrees |
| Cable | 3-core (16 AWG) Deep-Sea cable, 800 mm |
| Dimming Mode | PWM control |
| Filter Compatibility | 25 mm cylindrical universal filters |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Subsea illumination for ROVs, USVs, and underwater robotics; noted as compatible with Pixhawk and ArduSub control systems.
Compatible accessories
Subsea Accessory Mounting Bracket (25 mm cylindrical seat), Deep-Sea cable penetrators and M10 gland variants, cable connectors and dummy sealing caps, MOS Low-Side Switch Board, Toggle Relay Control Module, M10 coupling tube. Bare wire leads require a separately sold waterproof feedthrough.
Selection guides
How to choose between the options in this category, and what to check before ordering.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
What is its depth rating?
1,000 m / 3,281 ft (recommended under 800 m for continuous use).
How much does it weigh?
168 g.
What is it made from?
Anodized aluminum alloy.
What are its dimensions?
98 mm length x 30 mm diameter.
What is its temperature range?
-10 to 60 C.
Which cable is included?
3-core (16 AWG) Deep-Sea cable, 800 mm.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Subsea Dimmable LED Light (1500 Lumens / 6000K) are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Subsea Dimmable LED Light (1500 Lumens / 6000K) across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
