Blu-Sub MOS Low-Side Switch Board (BS-ELE-MOSLS series)
Blu-Sub Mechatronics
- Manufacturer
- Blu-Sub Mechatronics
- Part number
- Confirmed on enquiry
- Category
- Switches & Potentiometers

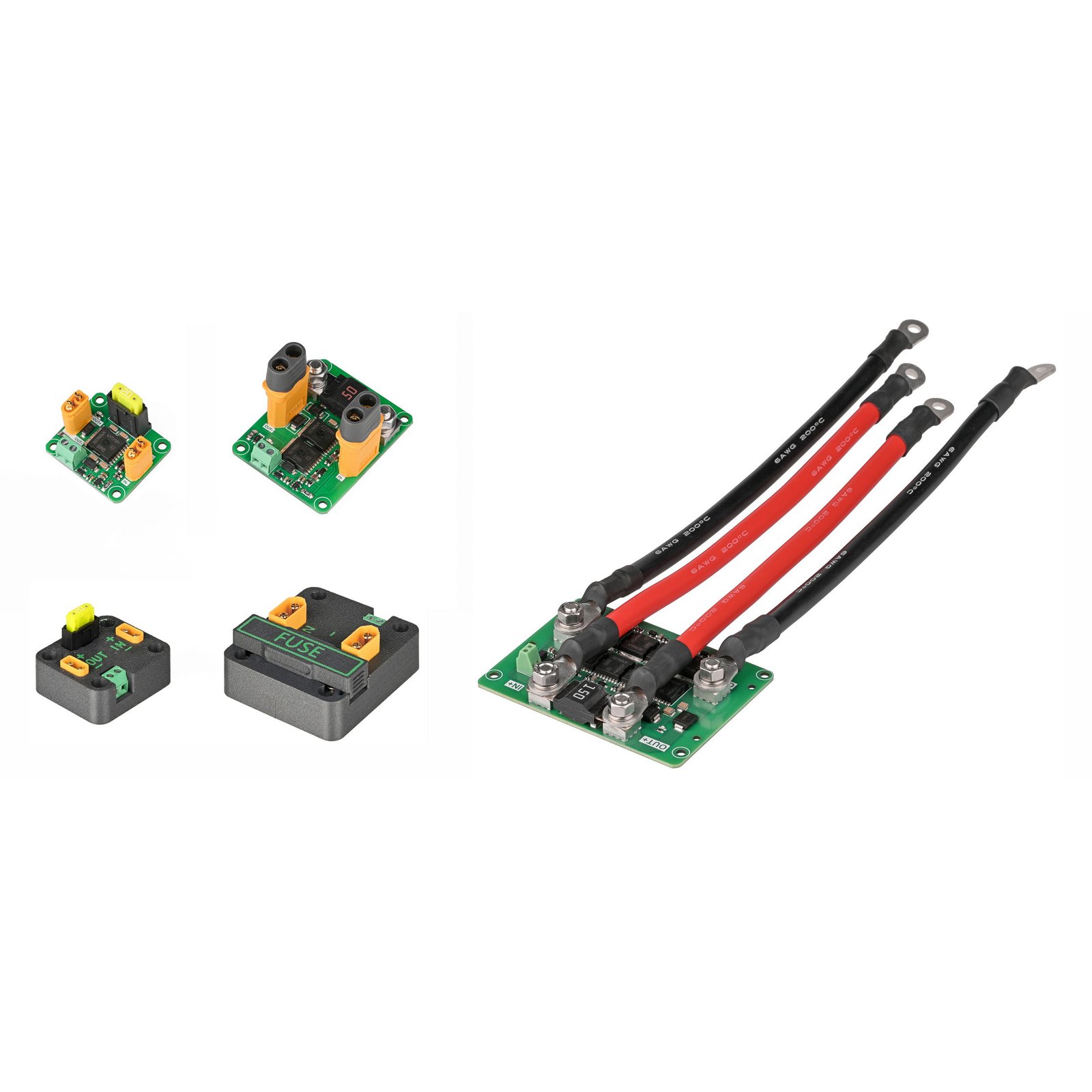

MOS Low-Side Switch Board (BS-ELE-MOSLS series)
A compact, high-current MOSFET power control module that switches the negative (low) side of a load and accepts logic-level input from a latching switch, enabling centralized power architectures with distributed manual control points. It is used to safely control lights, thrusters, or solenoids at currents beyond what a subsea rotary switch can handle directly.
Specifications
| Product type | Switching board |
| Connectors | 15A: XT30; 30A: XT60; 120A: M5 screw terminals |
| Dimensions | 15A: 35x30 mm; 30A: 42x52 mm; 120A: 81.2x60 mm |
| Weight | 15A: 12.6 g; 30A: 48.4 g; 120A: 282.5 g |
| Supply Voltage | 13-28 VDC |
| Current Ratings | 15A, 30A, or 120A variants |
| MOS On-Resistance | 15A: 0.58 m-ohm; 30A: 0.28 m-ohm; 120A: 0.07 m-ohm |
| Static Current | 320 uA |
| Shell Material | 3D-printed PLA / PLA-CF (optional) |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Centralized power distribution and control for ROVs and USVs, switching high-current loads (lights, thrusters, solenoids) from a low-power latching switch signal.
Compatible accessories
Subsea M8/M10 Rotary On/Off Switch, Subsea M10 Rotary Waveband Switch, Subsea M10 Pressure Trigger Switch, Subsea Dimmable LED Light, Subsea M10 Signal Indicator.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
How much does it weigh?
15A: 12.6 g; 30A: 48.4 g; 120A: 282.5 g.
What are its dimensions?
15A: 35x30 mm; 30A: 42x52 mm; 120A: 81.2x60 mm.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub MOS Low-Side Switch Board (BS-ELE-MOSLS series) are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub MOS Low-Side Switch Board (BS-ELE-MOSLS series) across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Switches & Potentiometers
All Switches & Potentiometers in the catalogue →Goes with this
Other parts in this category. These are not alternatives to the part above — they are what it is installed alongside.
Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Blu-Sub Mechatronics distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare switching boards
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Weight | Dimensions | Product type |
|---|---|---|---|
| MOS Low-Side Switch Board (BS-ELE-MOSLS series) this page | 15A: 12.6 g; 30A: 48.4 g; 120A: 282.5 g | 15A: 35x30 mm; 30A: 42x52 mm; 120A: 81.2x60 mm | Switching board |
| Toggle Relay Control Module (BS-ELE-PBR12-XXX-16A1 / BS-ELE-PBR24-XXX-16A1) | ~22 g | 72 x 20 x 20 mm | Switching board |
