Blu-Sub Subsea M10 Rotary Waveband Switch
Blu-Sub Mechatronics
- Manufacturer
- Blu-Sub Mechatronics
- Part number
- Confirmed on enquiry
- Category
- Switches & Potentiometers

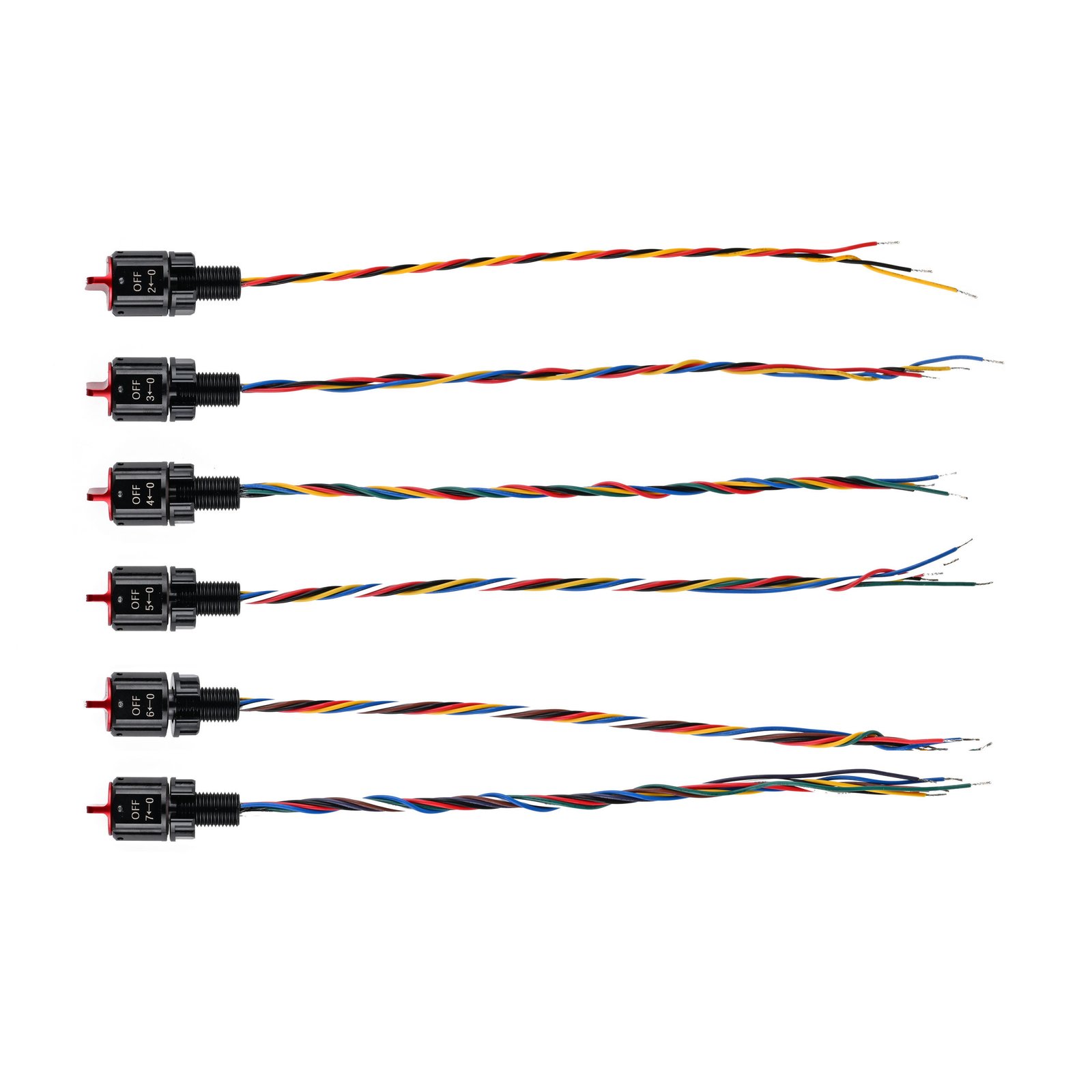

Subsea M10 Rotary Waveband Switch
A compact, multi-position rotary selector switch for sealed underwater enclosures, allowing selection between 3 to 8 positions without opening the housing. It supports continuous 360 degree rotation in either direction with tactile mechanical feedback and can drive external control modules for higher-power applications.
Specifications
| Product type | Rotary switch |
| Depth Rating | 1,000 m (3,280 ft) |
| Material | 6061 aluminum, black anodized bulkhead, red knob |
| Available Positions | 3, 4, 5, 6, 7, or 8 |
| Electrical Rating | 0.5 A @ 24 VDC; 0.2 A @ 48 VDC |
| Wire | 24 AWG, ~200 mm |
| O-ring | 12 x 1.5 mm, FKM75 |
| Temperature Range | -20 to 70 C |
| Rotational Force | 400 +/- 150 g |
| Design Lifetime | 3 years or 500 cycles to rated depth |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Underwater mode selection, waveform/channel routing, and multi-function control interfaces on ROVs and sensor modules requiring sealed manual switching.
Compatible accessories
MOS Low-Side Switch Board, subsea enclosures (aluminum/acrylic tubes, boxes), Subsea M10 Coupling Tube, Universal M8/M10 Installation Wrench.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
What is its depth rating?
1,000 m (3,280 ft).
What is it made from?
6061 aluminum, black anodized bulkhead, red knob.
What is its temperature range?
-20 to 70 C.
What service life is the Blu-Sub Subsea M10 Rotary Waveband Switch rated for?
3 years or 500 cycles to rated depth.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Subsea M10 Rotary Waveband Switch are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Subsea M10 Rotary Waveband Switch across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Switches & Potentiometers
All Switches & Potentiometers in the catalogue →Goes with this
Other parts in this category. These are not alternatives to the part above — they are what it is installed alongside.
Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Blu-Sub Mechatronics distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare rotary switches
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Depth Rating | Material | Product type | Design Lifetime | Electrical Rating |
|---|---|---|---|---|---|
| Subsea M10 Rotary Waveband Switch this page | 1,000 m (3,280 ft) | 6061 aluminum, black anodized bulkhead, red knob | Rotary switch | 3 years or 500 cycles to rated depth | 0.5 A @ 24 VDC; 0.2 A @ 48 VDC |
| Subsea M8 Rotary On/Off Switch (BS-SSC-SSSWI-BLK-08A1) | 1,000 m (3,280 ft) | Black anodized aluminum bulkhead, red knob | Rotary switch | 3 years or 500 cycles at rated depth | 0.5 A @ 125 VAC or 0.3 A @ 28 VDC |
| Subsea M10 Rotary On/Off Switch (BS-SSC-SSRSW-BLK-10A1) | 1,000 m (3,280 ft) | 6061 black anodized aluminum or 316 stainless steel | Rotary switch | — | 0.5 A @ 24 VDC; 0.2 A @ 48 VDC |
