Blu-Sub Subsea M10 Rotary On/Off Switch (BS-SSC-SSRSW-BLK-10A1)
Blu-Sub Mechatronics
- Manufacturer
- Blu-Sub Mechatronics
- Part number
- Confirmed on enquiry
- Category
- Switches & Potentiometers

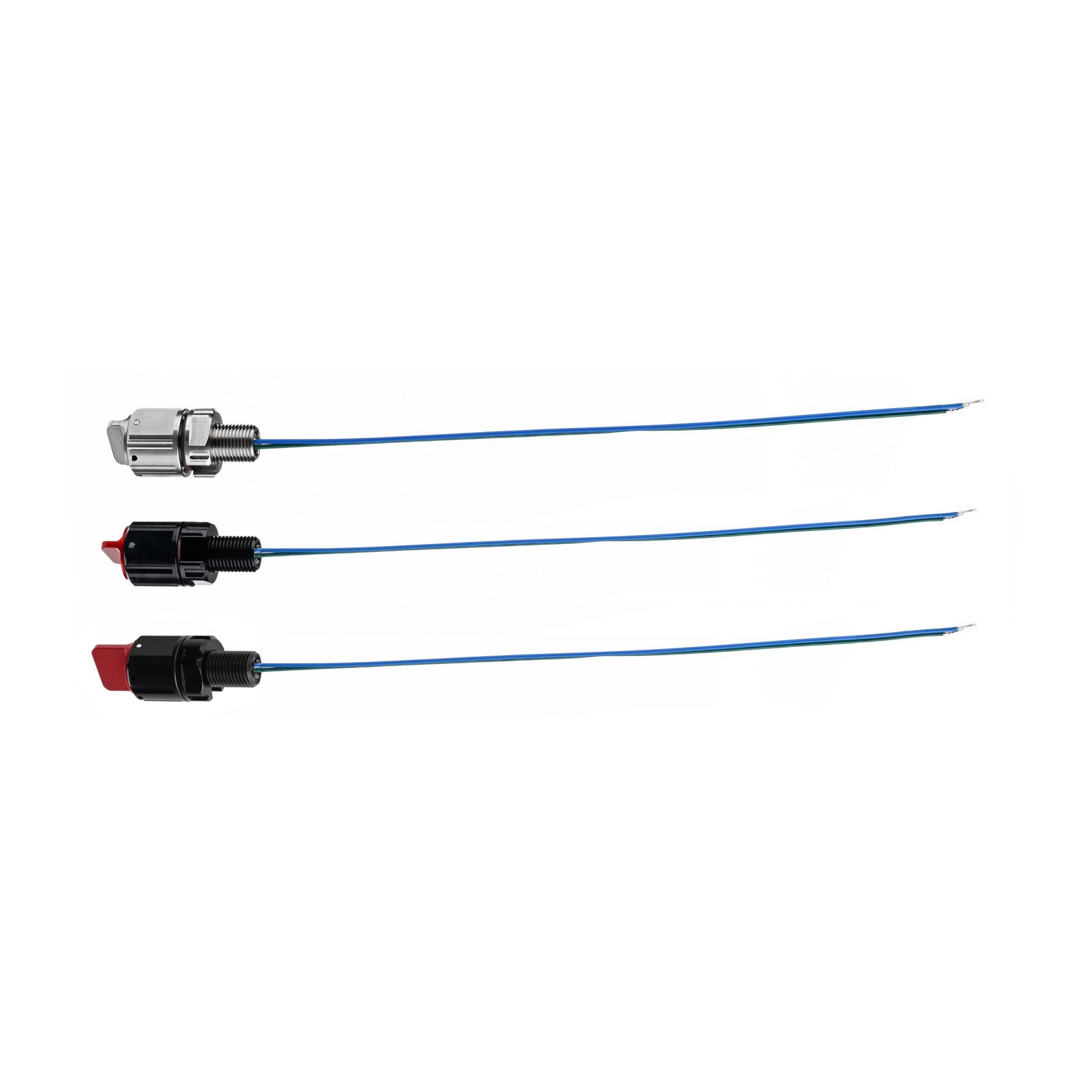

Subsea M10 Rotary On/Off Switch (BS-SSC-SSRSW-BLK-10A1)
A rugged, latching underwater rotary switch that toggles power or signal circuits inside sealed subsea enclosures without opening the housing. It has a two-position design with tactile clicks and audible feedback, rated for reliable manual switching to 1,000 m depth.
Specifications
| Product type | Rotary switch |
| Depth Rating | 1,000 m (3,280 ft) |
| Thread Size | M10 bulkhead mount |
| Material | 6061 black anodized aluminum or 316 stainless steel |
| Weight | 20-43 g depending on variant |
| Electrical Rating | 0.5 A @ 24 VDC; 0.2 A @ 48 VDC |
| Contact Resistance | 100 m-ohm max |
| Dielectric Strength | 500 VAC (1 min) |
| Insulation Resistance | 100 M-ohm min (500 VDC) |
| O-ring | 12 x 1.5 mm, FKM75 fluorine rubber |
| Temperature Range | -20 to 70 C |
| Wire | 24 AWG, green/blue, ~200 mm |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Manual on/off control interfaces for ROVs, AUVs, underwater lighting, and instrumentation panels requiring sealed low-power switching.
Compatible accessories
MOS Low-Side Switch Board (for high-current switching), Subsea M10 Coupling Tube, Universal M8/M10 Installation Wrench, subsea enclosure tubes and end-caps.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
What is its depth rating?
1,000 m (3,280 ft).
How much does it weigh?
20-43 g depending on variant.
What is it made from?
6061 black anodized aluminum or 316 stainless steel.
What thread does it use?
M10 bulkhead mount.
What is its temperature range?
-20 to 70 C.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Subsea M10 Rotary On/Off Switch (BS-SSC-SSRSW-BLK-10A1) are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Subsea M10 Rotary On/Off Switch (BS-SSC-SSRSW-BLK-10A1) across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Switches & Potentiometers
All Switches & Potentiometers in the catalogue →Goes with this
Other parts in this category. These are not alternatives to the part above — they are what it is installed alongside.
Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Blu-Sub Mechatronics distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare rotary switches
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Depth Rating | Weight | Thread Size | Product type | Electrical Rating |
|---|---|---|---|---|---|
| Subsea M10 Rotary On/Off Switch (BS-SSC-SSRSW-BLK-10A1) this page | 1,000 m (3,280 ft) | 20-43 g depending on variant | M10 bulkhead mount | Rotary switch | 0.5 A @ 24 VDC; 0.2 A @ 48 VDC |
| Subsea M8 Rotary On/Off Switch (BS-SSC-SSSWI-BLK-08A1) | 1,000 m (3,280 ft) | 18.5 g | M8 x 1 | Rotary switch | 0.5 A @ 125 VAC or 0.3 A @ 28 VDC |
| Subsea M10 Rotary Waveband Switch | 1,000 m (3,280 ft) | — | — | Rotary switch | 0.5 A @ 24 VDC; 0.2 A @ 48 VDC |
