Blu-Sub Low-Depth M10 Gland Cable Penetrator Subsea Connector
Blu-Sub Mechatronics
- Manufacturer
- Blu-Sub Mechatronics
- Part number
- Confirmed on enquiry
- Category
- Cables & Connectors

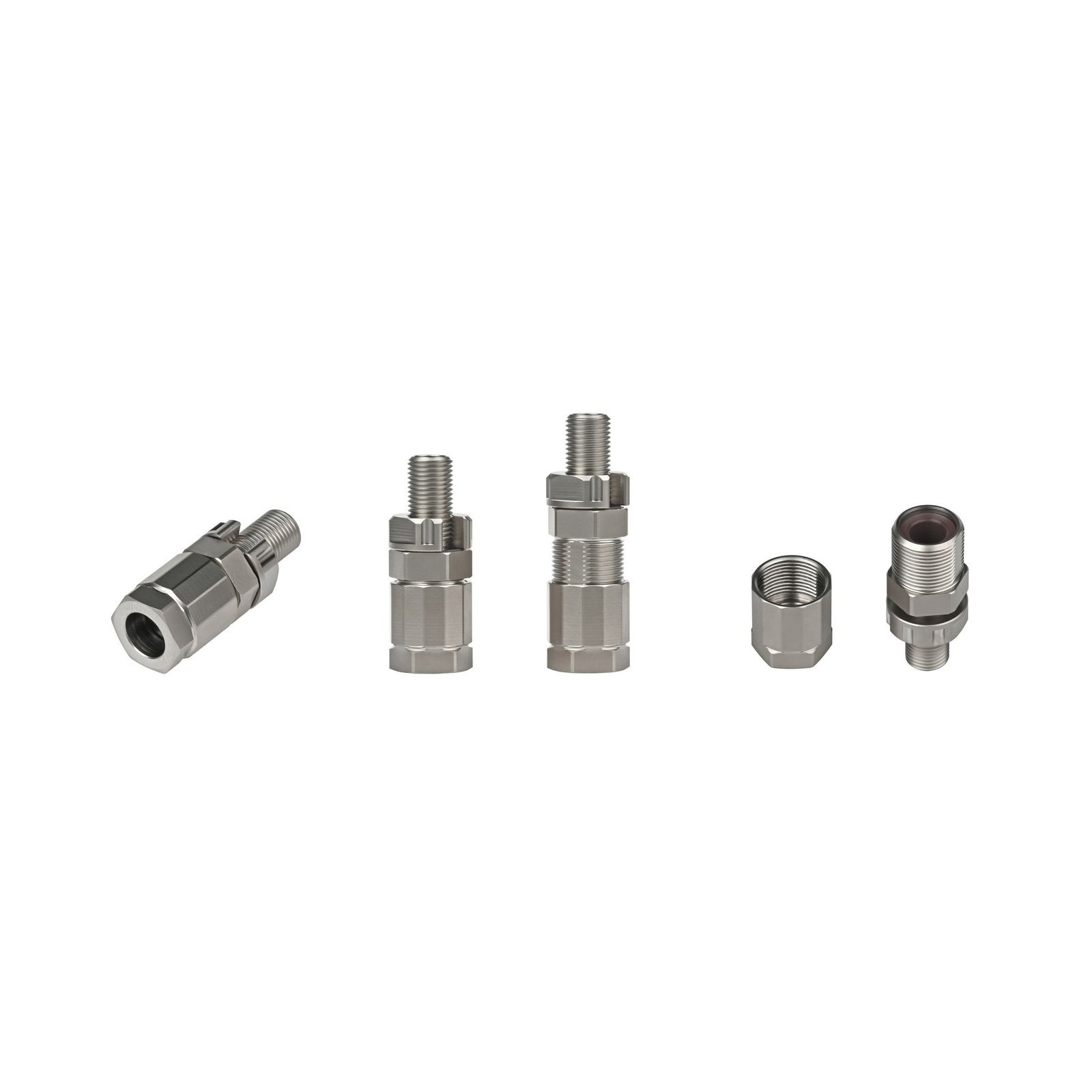

Low-Depth M10 Gland Cable Penetrator
A compact, pressure-sealed M10 cable pass-through for shallow-water applications, forming a watertight seal via o-rings and a mechanical split compression plug/sleeve ring system. Built with a nickel-plated brass/copper body rather than the anodized aluminum used on the deeper-rated Blu-Sub penetrators, reflecting its lower depth rating and price point.
Specifications
| Product type | Cable penetrator |
| Depth Rating | 100 m (328 ft) |
| Thread Size | M10 |
| Material | Copper body, nickel-plated brass construction |
| Weight | ~46 g |
| Cable Size Options | 6 variants, 5.6x3.4 mm to 8.4x5.9 mm |
| Seal Type | Split compression plug with sleeve ring and o-ring |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Cable feedthroughs for shallow-water ROVs/AUVs, sensor and camera housings, and inspection equipment not requiring deep-rated sealing.
Compatible accessories
Deep-Sea Underwater Cable; Deep-Sea Shielded Data & Power Cable; Scratch-Proof Wrench Tool; Universal M8/M10 Installation Wrench; compatible end-caps
Selection guides
How to choose between the options in this category, and what to check before ordering.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
What is its depth rating?
100 m (328 ft).
How much does it weigh?
~46 g.
What is it made from?
Copper body, nickel-plated brass construction.
What thread does it use?
M10.
Which cable is included?
6 variants, 5.6x3.4 mm to 8.4x5.9 mm.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Low-Depth M10 Gland Cable Penetrator Subsea Connector are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Low-Depth M10 Gland Cable Penetrator Subsea Connector across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Cables & Connectors
Cables & Connectors selection guide & comparison →Goes with this
Other parts in this category. These are not alternatives to the part above — they are what it is installed alongside.
Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Blu-Sub Mechatronics distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare cable penetrators
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Depth Rating | Weight | Material | Thread Size | Cable Size Options |
|---|---|---|---|---|---|
| Low-Depth M10 Gland Cable Penetrator this page | 100 m (328 ft) | ~46 g | Copper body, nickel-plated brass construction | M10 | 6 variants, 5.6x3.4 mm to 8.4x5.9 mm |
| Deep-Sea M10 Gland Cable Penetrator | Aluminum: 300 m (984 ft); Stainless Steel: 1,000 m (3,281 ft) | ~15 g (aluminum); ~50 g (stainless steel) | — | M10 bulkhead port | 6 variants, from 5.6x3.4 mm to 8.4x5.9 mm |
| Mid-Depth M8 Gland Cable Penetrator | 300 m (984 ft) | ~8 g | Black anodized aluminum | — | — |
| Deep-Sea Cable Penetrator | Up to 1,000 m (3,281 ft) | — | 6061 aluminum, black anodized | — | — |
