Deep-Sea Cable Connectors - M10 Bulkhead

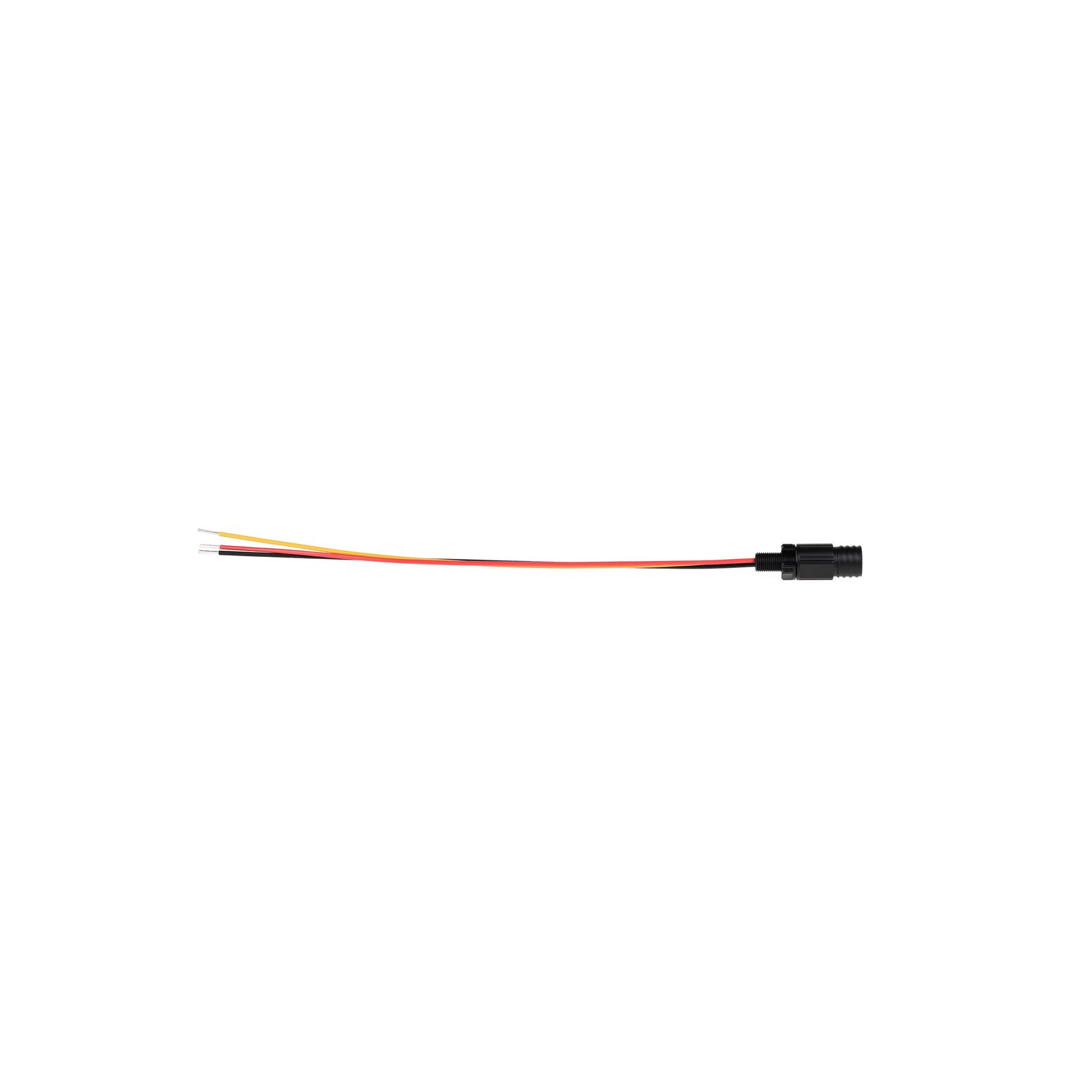

Pre-assembled, panel-mount M10 connectors with potted internal wiring and sealed housings for long-term underwater deployment at depths up to 1,000 meters. Each unit has a sealed internal pigtail cable (~250 mm) with gold-plated pins and color-coded wiring, secured to the enclosure wall with o-rings and locking hardware.
Specifications
| Product type | Underwater connector |
| Depth Rating | 1,000 m (3,281 ft) |
| Material | Black anodized aluminum |
| Weight | 34-37 g |
| Operating Temperature | -25C to 70C |
| Pin Options | 3-pin or 6-pin |
| Core Rated Voltage/Current | 500 VAC; 15A (16AWG), 6-pin adds 3A (24AWG) |
| Internal Cable Length | ~250 mm |
| Mounting Hole Diameter | 10.1 +/- 0.1 mm |
| Insulation/Contact Resistance | >=10 M-ohm / <=10 m-ohm |
| Wiring (3-pin) | Red / Yellow / Black |
| Wiring (6-pin) | Red / Yellow / Black / Green / White / Blue (UL1332) |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Panel/bulkhead feedthrough for underwater vehicles, sensor housings, lighting assemblies, and marine instrumentation requiring a sealed, modular power or signal interface.
Compatible accessories
Deep-Sea Underwater Cable; Deep-Sea Cable Connectors - Female Socket & Male Plug; Deep-Sea Cable Connectors - Dummy Sealing Cap; M10-mountable enclosures (end-caps, watertight boxes); Universal M8/M10 Installation Wrench
Selection guides
How to choose between the options in this category, and what to check before ordering.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
What is its depth rating?
1,000 m (3,281 ft).
How much does it weigh?
34-37 g.
What is it made from?
Black anodized aluminum.
What is its temperature range?
-25C to 70C.
How is it mounted?
10.1 +/- 0.1 mm.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Deep-Sea Cable Connectors - M10 Bulkhead are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Deep-Sea Cable Connectors - M10 Bulkhead across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Cables & Connectors
Cables & Connectors selection guide & comparison →Goes with this
Other parts in this category. These are not alternatives to the part above — they are what it is installed alongside.
Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Blu-Sub Mechatronics distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare underwater connectors
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Depth Rating | Weight | Material | Product type | Operating Temperature |
|---|---|---|---|---|---|
| Deep-Sea Cable Connectors - M10 Bulkhead this page | 1,000 m (3,281 ft) | 34-37 g | Black anodized aluminum | Underwater connector | -25C to 70C |
| Deep-Sea Cable Connectors - Female Socket & Male Plug | 1,000 m (3,281 ft) | 20-23 g (depending on configuration) | Black anodized aluminum, gold-plated copper contacts | Underwater connector | -25C to 70C |
