Blu-Sub Deep-Sea Cable Connectors - Female Socket & Male Plug
Blu-Sub Mechatronics
- Manufacturer
- Blu-Sub Mechatronics
- Part number
- Confirmed on enquiry
- Category
- Cables & Connectors

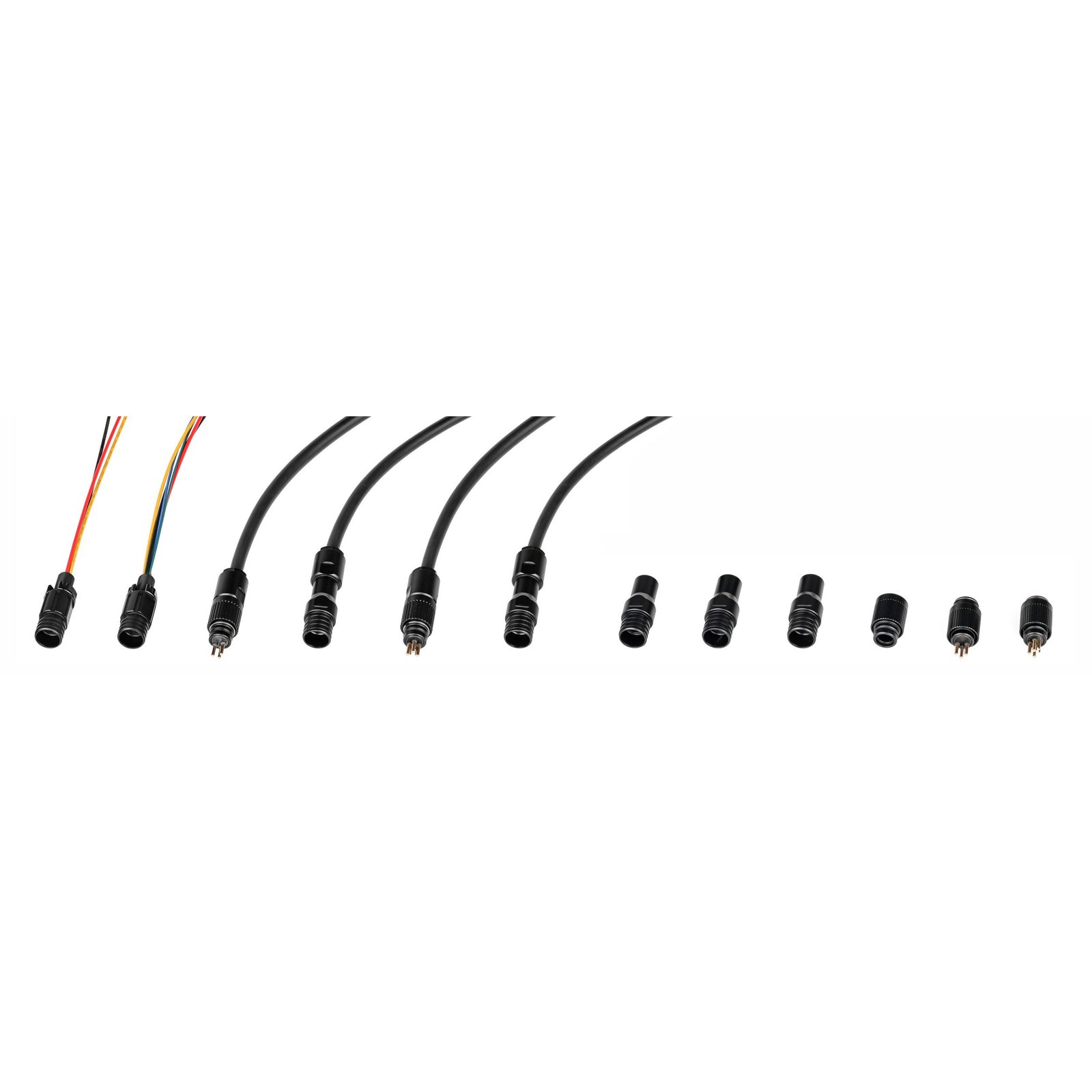

Deep-Sea Cable Connectors - Female Socket & Male Plug
Modular dry-mate connectors engineered for underwater use to depths of up to 1,000 meters. They must be fully mated in air before submersion, and feature hard-anodized aluminum housings with gold-plated copper pins for reliable power or signal transmission in subsea vehicles and instrumentation.
Specifications
| Product type | Underwater connector |
| Depth Rating | 1,000 m (3,281 ft) |
| Material | Black anodized aluminum, gold-plated copper contacts |
| Weight | 20-23 g (depending on configuration) |
| Operating Temperature | -25C to 70C |
| Pin Configurations | 3-pin or 6-pin |
| Voltage Rating | 500 VAC |
| Current Rating | 15A (16AWG) for 3-pin; 15A (16AWG) + 3A (24AWG) for 6-pin |
| Cable Compatibility | 5-8 mm cables |
| Contact Resistance | <=10 m-ohm |
| Insulation Resistance | >=10 M-ohm |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Wet/dry-mate power and signal connections for underwater vehicles, sensor enclosures, marine lighting, and subsea instrumentation.
Compatible accessories
Deep-Sea Underwater Cable; Deep-Sea Cable Connectors - M10 Bulkhead; Deep-Sea Cable Connectors - Dummy Sealing Cap; Deep-Sea Shielded Data & Power Cable; O-Ring Lubricant (Molykote 111)
Selection guides
How to choose between the options in this category, and what to check before ordering.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
What is its depth rating?
1,000 m (3,281 ft).
What voltage does it run on?
500 VAC.
How much does it weigh?
20-23 g (depending on configuration).
What is it made from?
Black anodized aluminum, gold-plated copper contacts.
What is its temperature range?
-25C to 70C.
Which cable is included?
5-8 mm cables.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Deep-Sea Cable Connectors - Female Socket & Male Plug are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Deep-Sea Cable Connectors - Female Socket & Male Plug across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Cables & Connectors
Cables & Connectors selection guide & comparison →Goes with this
Other parts in this category. These are not alternatives to the part above — they are what it is installed alongside.
Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Blu-Sub Mechatronics distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare underwater connectors
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Depth Rating | Weight | Product type | Operating Temperature |
|---|---|---|---|---|
| Deep-Sea Cable Connectors - Female Socket & Male Plug this page | 1,000 m (3,281 ft) | 20-23 g (depending on configuration) | Underwater connector | -25C to 70C |
| Deep-Sea Cable Connectors - M10 Bulkhead | 1,000 m (3,281 ft) | 34-37 g | Underwater connector | -25C to 70C |
