Blu-Sub Deep-Sea M10 Gland Cable Penetrator Subsea Connector
Blu-Sub Mechatronics
- Manufacturer
- Blu-Sub Mechatronics
- Part number
- Confirmed on enquiry
- Category
- Cables & Connectors

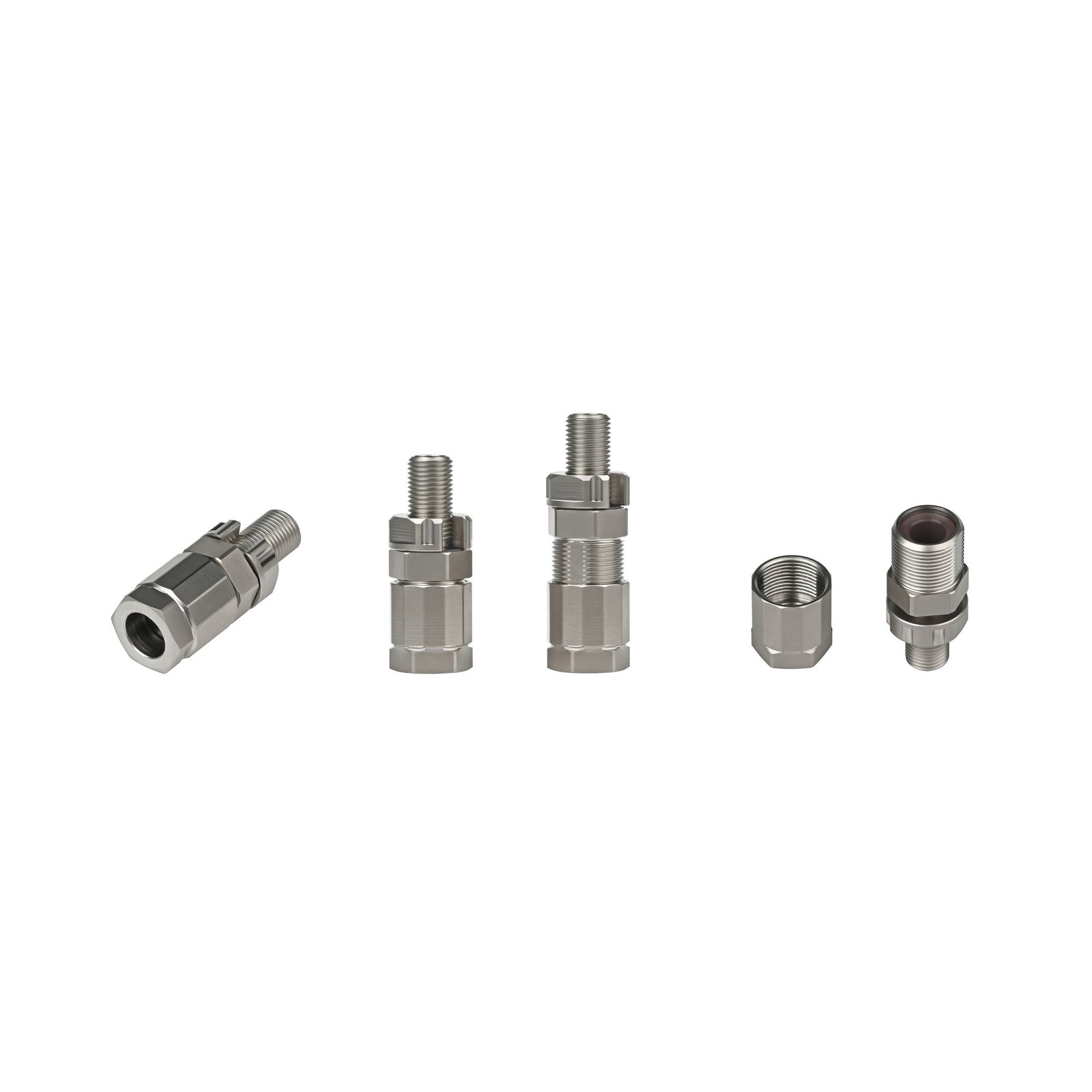

Deep-Sea M10 Gland Cable Penetrator
A compact, pressure-rated M10 cable pass-through for subsea enclosure walls or end-caps, using o-rings plus a mechanical compression system. A split compression plug and sleeve ring compress around the cable sheath as the locking cap is tightened, giving a removable, re-usable watertight and strain-relieved seal (unlike the epoxy-sealed standard penetrator).
Specifications
| Product type | Cable penetrator |
| Depth Rating | Aluminum: 300 m (984 ft); Stainless Steel: 1,000 m (3,281 ft) |
| Thread Size | M10 bulkhead port |
| Weight | ~15 g (aluminum); ~50 g (stainless steel) |
| Materials | Black anodized 6061 aluminum, or 316 stainless steel |
| Cable Size Options | 6 variants, from 5.6x3.4 mm to 8.4x5.9 mm |
| O-Ring Types | #2 black or #3 brown (size-dependent) |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Modular, removable cable feedthroughs for ROVs, custom subsea housings, sensor pods, and camera systems needing deep-water strain relief.
Compatible accessories
Deep-Sea Underwater Cable; Deep-Sea Shielded Data & Power Cable; Scratch-Proof Wrench Tool (aluminum versions); Universal M8/M10 Installation Wrench; Subsea enclosures, end-caps, and M10 Coupling Tube
Selection guides
How to choose between the options in this category, and what to check before ordering.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
What is its depth rating?
Aluminum: 300 m (984 ft); Stainless Steel: 1,000 m (3,281 ft).
How much does it weigh?
~15 g (aluminum); ~50 g (stainless steel).
What thread does it use?
M10 bulkhead port.
Which cable is included?
6 variants, from 5.6x3.4 mm to 8.4x5.9 mm.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Deep-Sea M10 Gland Cable Penetrator Subsea Connector are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Deep-Sea M10 Gland Cable Penetrator Subsea Connector across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Cables & Connectors
Cables & Connectors selection guide & comparison →Goes with this
Other parts in this category. These are not alternatives to the part above — they are what it is installed alongside.
Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Blu-Sub Mechatronics distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare cable penetrators
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Weight | Thread Size | Cable Size Options | Product type |
|---|---|---|---|---|
| Deep-Sea M10 Gland Cable Penetrator this page | ~15 g (aluminum); ~50 g (stainless steel) | M10 bulkhead port | 6 variants, from 5.6x3.4 mm to 8.4x5.9 mm | Cable penetrator |
| Low-Depth M10 Gland Cable Penetrator | ~46 g | M10 | 6 variants, 5.6x3.4 mm to 8.4x5.9 mm | Cable penetrator |
| Mid-Depth M8 Gland Cable Penetrator | ~8 g | — | — | Cable penetrator |
| Deep-Sea Cable Penetrator | — | — | — | Cable penetrator |
