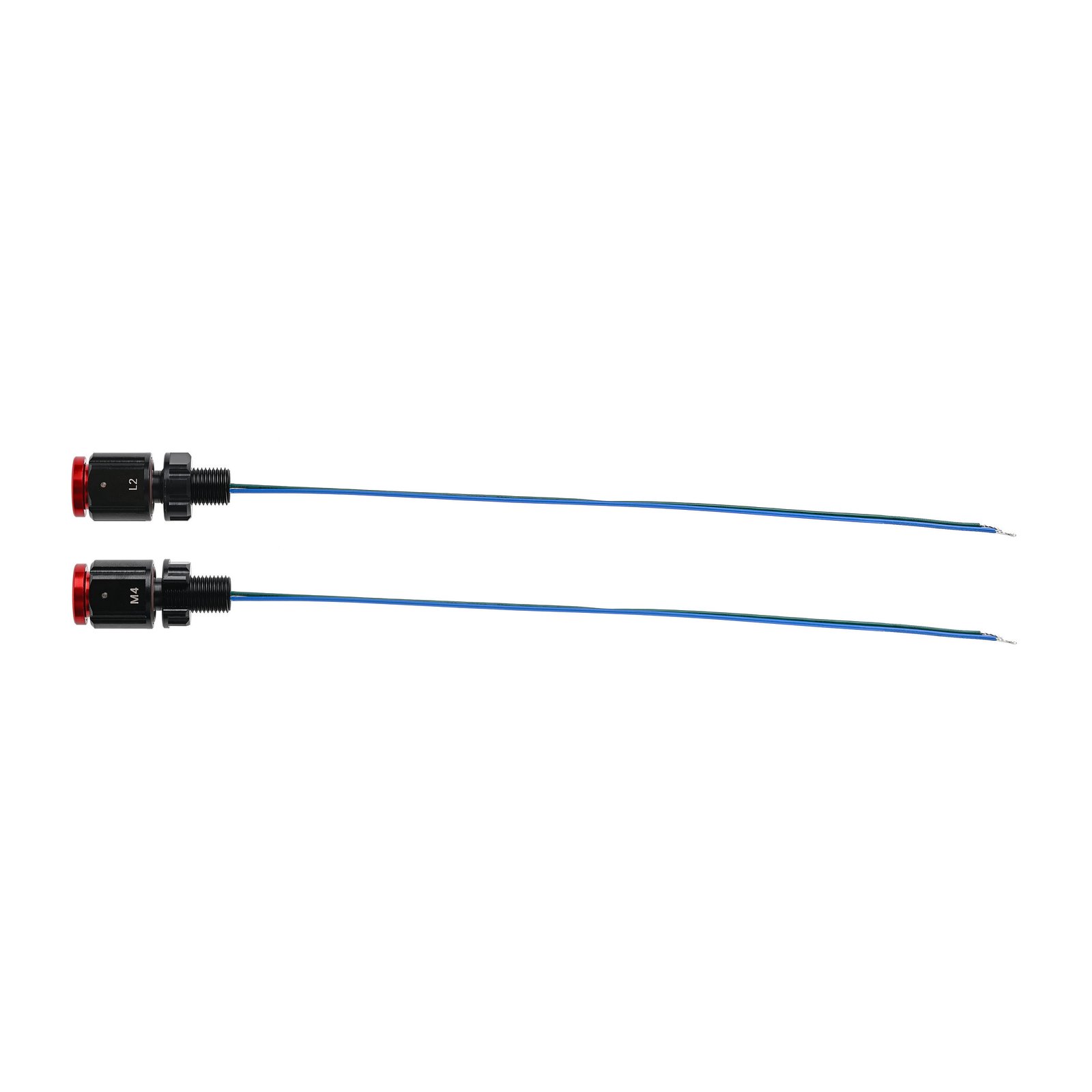

Subsea M10 Pressure Trigger Switch
A depth-rated, normally open switch that functions as a manual momentary button above its trigger pressure and latches closed automatically once submerged past its activation depth, remaining ON as long as that depth is maintained. Used for passive depth-based triggering as well as manual momentary control.
Key specifications
- Electrical Rating
- 0.5 A @ 125 V max
- Depth Rating
- 1,000 m (3,280 ft)
- Trigger Pressure Options
- 2 Bar / 0.2 MPa (~20 m) or 4 Bar / 0.4 MPa (~40 m)
Before you order: Check its thread, electrical rating and depth rating.
- Part number
- 2 options, see prices
- Type
- Subsea switches, displays and indicators
- Manufacturer's range
- Blu-Sub subsea switches, potentiometers and switching boards
Includes GST and delivery in India
Imported to order. Lead time confirmed with your quotation.
Request a quotation from your cart. No payment is required to submit.
Specifications
| Product type | Pressure trigger switch |
| Depth Rating | 1,000 m (3,280 ft) |
| Mounting Hole | 10.1 +/- 0.1 mm through-hole, 13 mm recommended hatch thickness |
| Material | Anodized aluminum housing |
| Weight | 22 g |
| Trigger Pressure Options | 2 Bar / 0.2 MPa (~20 m) or 4 Bar / 0.4 MPa (~40 m) |
| Electrical Rating | 0.5 A @ 125 V max |
| Wire | 24 AWG, ~200 mm, blue/green |
| O-ring | 12 x 1.5 mm, FKM75 brown fluorine rubber |
| Design Lifetime | 3 years or 500 cycles |
| Temperature Range | Air: -25 to 60 C; Water: -4 to 40 C |
Options and prices
| Option & SKU | Price | Add or enquire |
|---|---|---|
2 Bar · 0.2 MPa (20m) Trigger DepthBS-SSC-SSPTS-BLK-1002 | ₹12,937.21 | Request quote for 2 Bar · 0.2 MPa (20m) Trigger Depth |
4 Bar · 0.4 MPa (40m) Trigger DepthBS-SSC-SSPTS-BLK-1004 | ₹12,937.21 | Request quote for 4 Bar · 0.4 MPa (40m) Trigger Depth |
Prices are in rupees. Includes GST and delivery in India. Delivery and returns
Accessories and compatibility
Compatible accessories
Named by the manufacturer for this part.
Used for
- Depth-triggered activation of high-current devices (via MOS Low-Side Switch Board), ROV/AUV dive confirmation, safety interlocks, and kill-switch/limit detection
The manufacturer lists: MOS Low-Side Switch Board, Universal M8/M10 Installation Wrench, Spare O-Ring Set, subsea enclosures and end-caps.
Questions buyers ask
What is its depth rating?
1,000 m (3,280 ft).
What is it made of?
Anodized aluminum housing.
Where is the datasheet?
The manufacturer's own page for this part is linked under Documentation on this page; its datasheet and downloads, where the manufacturer publishes them, are there. We also send the datasheet and any drawings with your quotation.
Can I return it?
Yes, within 30 days of delivery, if it is unused and in its original packaging. You pay the return shipping, and we refund 90% of the price after checking the part.
Compare with other subsea switches, displays and indicators
The manufacturers’ figures for this part and the ones most like it, on the rows they publish. — Not specified
| Product | Depth Rating | Material | Electrical Rating | Wire | O-ring |
|---|---|---|---|---|---|
| Subsea M10 Pressure Trigger Switch this page | 1,000 m (3,280 ft) | Anodized aluminum housing | 0.5 A @ 125 V max | 24 AWG, ~200 mm, blue/green | 12 x 1.5 mm, FKM75 brown fluorine rubber |
| Subsea M10 Rotary On/Off Switch (BS-SSC-SSRSW-BLK-10A1) | 1,000 m (3,280 ft) | 6061 black anodized aluminum or 316 stainless steel | 0.5 A @ 24 VDC; 0.2 A @ 48 VDC | 24 AWG, green/blue, ~200 mm | 12 x 1.5 mm, FKM75 fluorine rubber |
| Subsea M10 Rotary Waveband Switch | 1,000 m (3,280 ft) | 6061 aluminum, black anodized bulkhead, red knob | 0.5 A @ 24 VDC; 0.2 A @ 48 VDC | 24 AWG, ~200 mm | 12 x 1.5 mm, FKM75 |
| Subsea M10 Tap Switch (Non-Latching) | 1,000 m (3,280 ft) | Black anodized aluminum | 0.5 A @ 125 VAC (varies by DC voltage) | 24 AWG, ~200 mm, blue/green | 12 x 1.5 mm, FKM75 fluorine rubber |
| Subsea Embedded Push Button Switch (Non-Magnetic) (BS-SSC-EPBSW-SSX-10A1) | 100 m (328 ft) | 316 stainless steel (non-magnetic) | Max 50 mA @ 12 VDC; min 10 uA @ 1 VDC | 24 AWG, ~200 mm | Not specified |
| Subsea M10 Rotary Potentiometer | 1,000 m (3,280 ft) | Black anodized aluminum bulkhead | Not specified | Not specified | 12 x 1.5 mm, FKM75 fluorine rubber |
