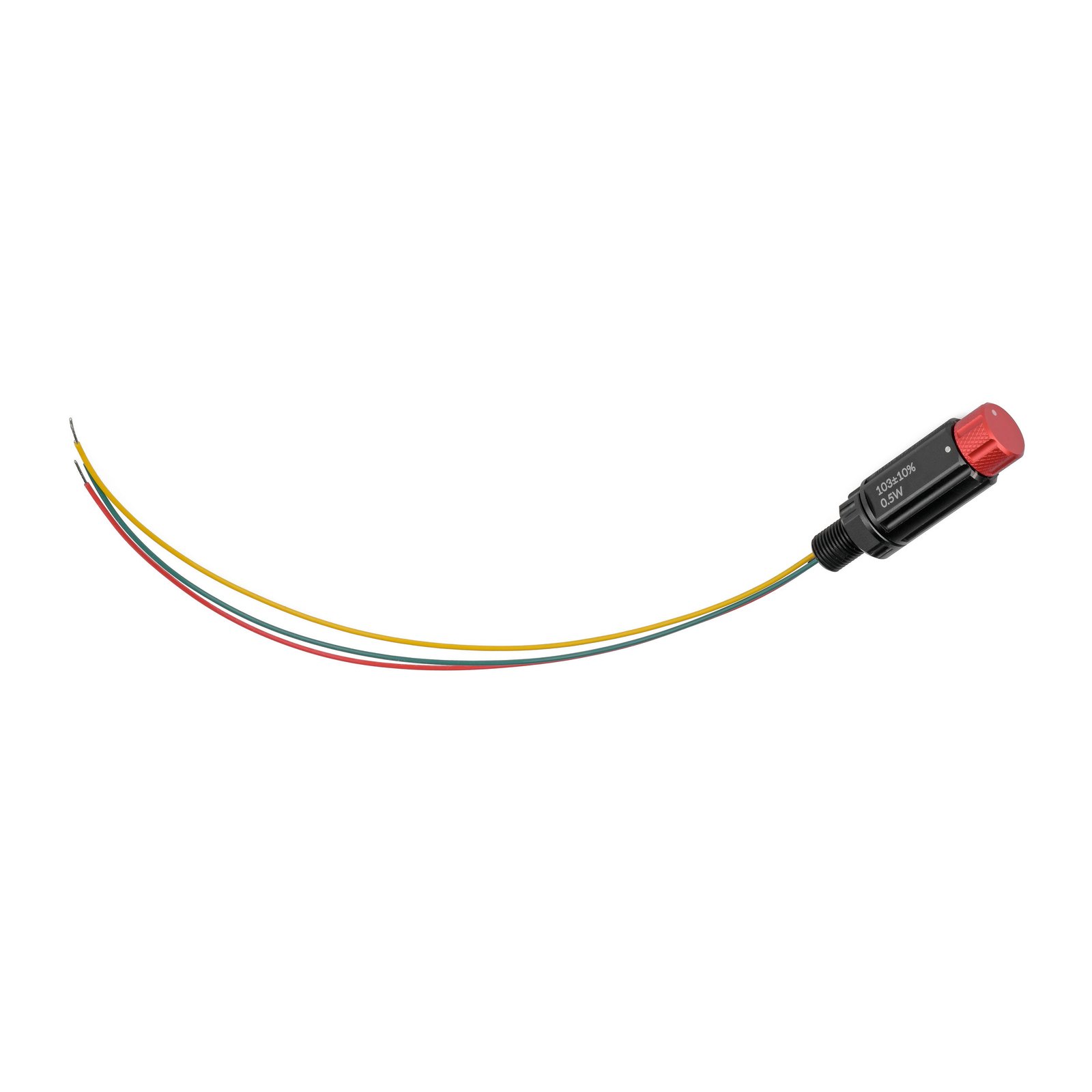

Subsea M10 Rotary Potentiometer
A sealed underwater adjustment interface for analog control in subsea electronics. It has a threaded M10 aluminum housing rated to 1,000 m and a red anodized, non-slip knob, allowing manual resistance adjustment without breaking enclosure integrity.
Key specifications
- Thread Size
- M10 x 1
- Depth Rating
- 1,000 m (3,280 ft)
- Resistance Value
- 10,000 ohm (10 kohm), +/-10% tolerance
- Rotation Range
- 240 deg +/-10 deg mechanical; 230 deg +/-10 deg electrical
Before you order: Check its thread, electrical rating and depth rating.
- Part number
- BS-SSC-SSRPT-BLK-A1A1
- Type
- Subsea switches, displays and indicators
- Manufacturer's range
- Blu-Sub subsea switches, potentiometers and switching boards
Includes GST and delivery in India
Imported to order. Lead time confirmed with your quotation.
Request a quotation from your cart. No payment is required to submit.
Specifications
| Product type | Potentiometer |
| Depth Rating | 1,000 m (3,280 ft) |
| Thread Size | M10 x 1 |
| Material | Black anodized aluminum bulkhead |
| Weight | 29.5 g |
| Resistance Value | 10,000 ohm (10 kohm), +/-10% tolerance |
| Rotation Range | 240 deg +/-10 deg mechanical; 230 deg +/-10 deg electrical |
| Temperature Coefficient | +/-250 ppm/C |
| O-ring | 12 x 1.5 mm, FKM75 fluorine rubber |
| Operating Temperature (water) | -4 to 40 C |
Price and supplied configuration
- SKU
BS-SSC-SSRPT-BLK-A1A1- Price
- ₹12,629.13
Prices are in rupees. Includes GST and delivery in India. Delivery and returns
Accessories and compatibility
Compatible accessories
Named by the manufacturer for this part.
Used for
- Manual analog adjustment in sealed subsea electronics, such as ROV speed control and underwater lighting brightness tuning
The manufacturer lists: Subsea M10 Coupling Tube, Universal M8/M10 Installation Wrench, enclosure tubes and watertight boxes, O-ring lubricant and spare O-ring sets.
Questions buyers ask
What is its depth rating?
1,000 m (3,280 ft).
What is it made of?
Black anodized aluminum bulkhead.
Where is the datasheet?
The manufacturer's own page for this part is linked under Documentation on this page; its datasheet and downloads, where the manufacturer publishes them, are there. We also send the datasheet and any drawings with your quotation.
Can I return it?
Yes, within 30 days of delivery, if it is unused and in its original packaging. You pay the return shipping, and we refund 90% of the price after checking the part.
Compare with other subsea switches, displays and indicators
The manufacturers’ figures for this part and the ones most like it, on the rows they publish. — Not specified
| Product | Depth Rating | Material | O-ring | Weight | Thread Size |
|---|---|---|---|---|---|
| Subsea M10 Rotary Potentiometer this page | 1,000 m (3,280 ft) | Black anodized aluminum bulkhead | 12 x 1.5 mm, FKM75 fluorine rubber | 29.5 g | M10 x 1 |
| Subsea M10 Rotary On/Off Switch (BS-SSC-SSRSW-BLK-10A1) | 1,000 m (3,280 ft) | 6061 black anodized aluminum or 316 stainless steel | 12 x 1.5 mm, FKM75 fluorine rubber | 20-43 g depending on variant | M10 bulkhead mount |
| Subsea M10 Rotary Waveband Switch | 1,000 m (3,280 ft) | 6061 aluminum, black anodized bulkhead, red knob | 12 x 1.5 mm, FKM75 | Not specified | Not specified |
| Subsea M10 Pressure Trigger Switch | 1,000 m (3,280 ft) | Anodized aluminum housing | 12 x 1.5 mm, FKM75 brown fluorine rubber | 22 g | Not specified |
| Subsea M10 Tap Switch (Non-Latching) | 1,000 m (3,280 ft) | Black anodized aluminum | 12 x 1.5 mm, FKM75 fluorine rubber | Not specified | Not specified |
| Subsea M8 Rotary On/Off Switch (BS-SSC-SSSWI-BLK-08A1) | 1,000 m (3,280 ft) | Black anodized aluminum bulkhead, red knob | 10 x 1.5 mm, FKM75 fluorine rubber | 18.5 g | M8 x 1 |
