Blu-Vision Binocular Video Camera

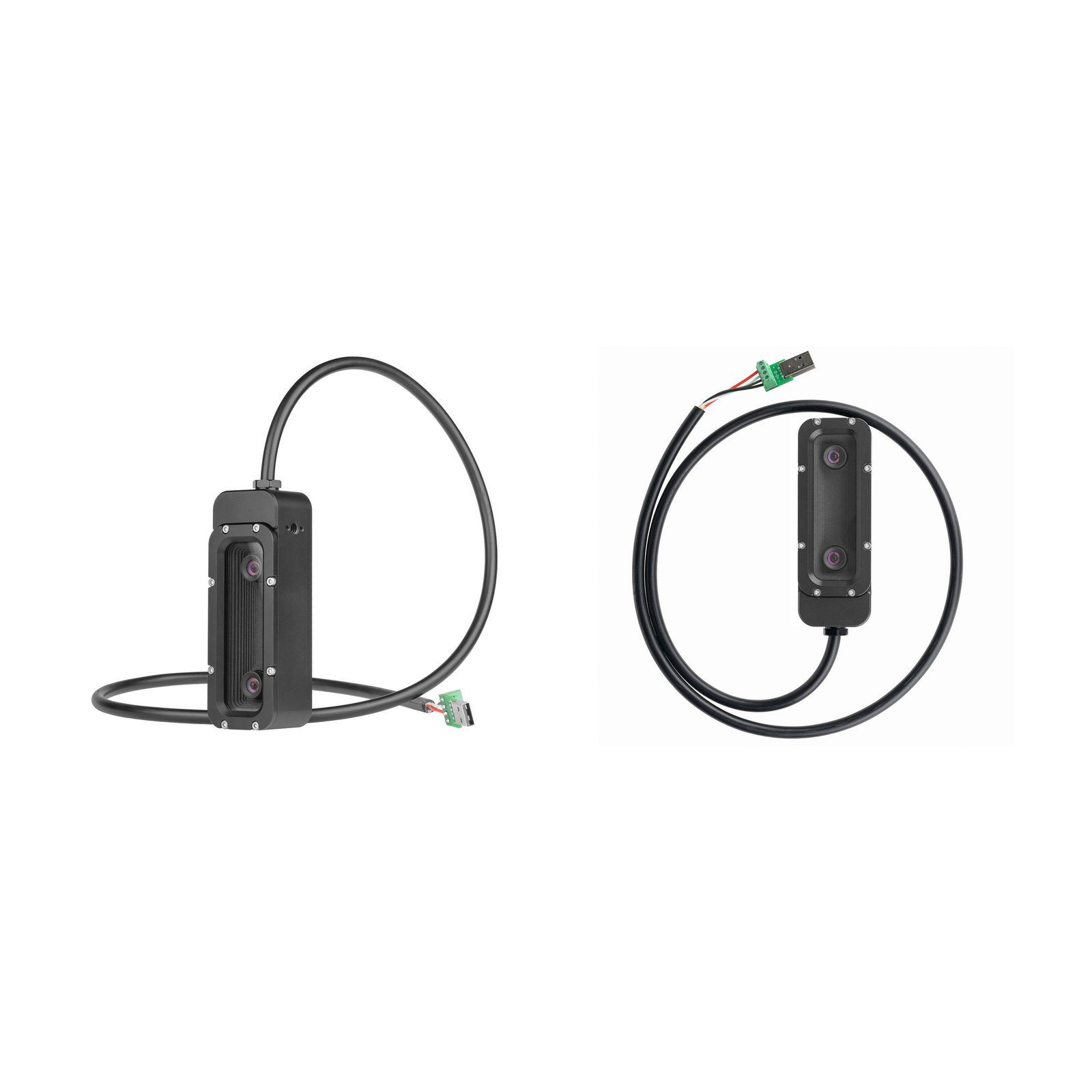

A compact stereo vision module for underwater robotics, using dual OV9750 CMOS sensors that deliver synchronized dual-channel imagery, stitched onboard and streamed as a single MJPEG image over USB 2.0. Housed in a full aluminum alloy enclosure with a tempered glass front, it is intended for depth sensing, obstacle avoidance, and 3D reconstruction on ROVs and underwater platforms.
Specifications
| Product type | Underwater camera |
| Depth Rating | 300 m / 984 ft |
| Interface | USB 2.0, UVC-compliant, MJPEG output |
| Mounting | 2x 1/4-inch ports + 8x M3 threaded holes |
| Material | Black anodized aluminum + tempered glass |
| Weight | 395 g |
| Operating Temperature | -4 to 40 C |
| Sensors | 2x OV9750 CMOS, 1/3 inch, 3.75 micron pixel |
| Resolution Options | 640x240, 1280x480, 2560x720, 2560x960 (spliced stereo) |
| Frame Rate | Up to 60 fps across all resolutions |
| Field of View | 70 degrees per lens (no distortion) |
| Minimum Illumination | 0.1 lux |
| Working Voltage | 5 V |
| Cable | 4-conductor Deep-Sea shielded data & power cable, ~800 mm, bare-lead termination |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Visual inspection, navigation, 3D reconstruction, stereo imaging, and obstacle detection on ROVs, USVs, and underwater vision research platforms.
Compatible accessories
Deep-Sea cable penetrators (standard, M10 gland, low-depth M10), cable connectors and M10 bulkhead connectors, dummy sealing caps, subsea enclosure tubes and end-caps, M10 coupling tubes, extended-length Deep-Sea shielded data & power cable. Ships with a USB test interface.
Selection guides
How to choose between the options in this category, and what to check before ordering.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
What is its depth rating?
300 m / 984 ft.
How much does it weigh?
395 g.
What is it made from?
Black anodized aluminum + tempered glass.
What is its temperature range?
-4 to 40 C.
How does it connect?
USB 2.0, UVC-compliant, MJPEG output.
Which cable is included?
4-conductor Deep-Sea shielded data & power cable, ~800 mm, bare-lead termination.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Vision Binocular Video Camera are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Vision Binocular Video Camera across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Cameras & Binoculars
Cameras & Binoculars selection guide & comparison →Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Blu-Sub Mechatronics distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare underwater cameras
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Depth Rating | Weight | Material | Interface | Mounting |
|---|---|---|---|---|---|
| Blu-Vision Binocular Video Camera this page | 300 m / 984 ft | 395 g | Black anodized aluminum + tempered glass | USB 2.0, UVC-compliant, MJPEG output | 2x 1/4-inch ports + 8x M3 threaded holes |
| Blu-Vision 8MP USB Video Camera | 300 m / 984 ft | 188 g | Black anodized aluminum + tempered glass | USB 2.0, bare-wire tail, 0.8 m cable | — |
| Blu-Vision Fish-Eye Binocular Video Camera | 300 m / 984 ft | 192 g | Black anodized aluminum + acrylic dome | — | 2x 1/4-inch ports + 4x M3 threaded holes |
