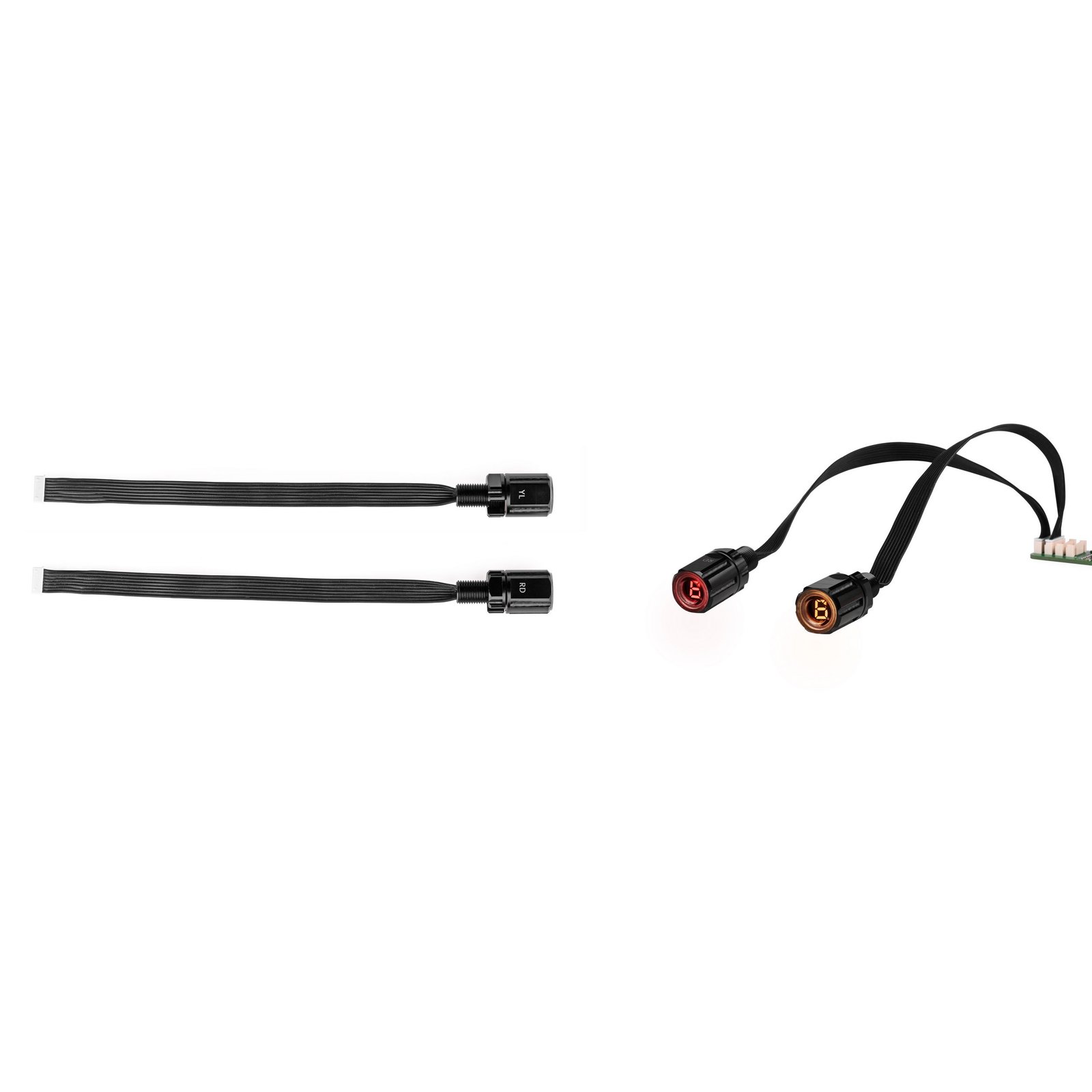

Subsea M10 7-Segment Display
A compact, single-digit LED readout module for underwater status/parameter monitoring, threaded into an M10x1 fitting and connected to a separately sold Blu-Sub Driver Board (which can drive up to 4 displays) for real-time monitoring of voltage, current, or PWM signals on ROVs and enclosures.
Specifications
| Product type | Subsea display |
| Depth Rating | 1,000 m / 3,281 ft |
| Interface | 1.25 mm 8-pin connector |
| Material | Anodized aluminum housing, polycarbonate display cover |
| Weight | Display 17 g; Driver Board 11.5 g |
| Operating Temperature | -10 to 60 C |
| Display Size | 0.28 inch |
| Thread Type | M10x1 |
| Colors Available | Red or Yellow |
| Wire Length | ~200 mm |
| Display Digits | Single digit, 0-9 and A-F |
| LED Voltage Range | 1.7-2.4 V |
| Forward Current | 20 mA (60 mA pulse max) |
| Brightness | Yellow 105 mcd / Red 22 mcd |
| Driver Board Size | 20 x 55 mm |
| Driver Board Voltage | 5 V DC |
| Communication | USART (TTL), 115,200 bps configurable |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Real-time monitoring of voltage, current, or PWM-based signals on ROVs, subsea enclosures, and tethered underwater systems.
Compatible accessories
Blu-Sub Driver Board (required, sold separately, supports up to 4 displays), aluminum/acrylic end-caps and flanges, watertight enclosure boxes, acrylic/aluminum enclosure tubes, M10 coupling tubes, Universal M8/M10 installation wrench. Includes O-ring and mounting nut.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
What is its depth rating?
1,000 m / 3,281 ft.
How much does it weigh?
Display 17 g; Driver Board 11.5 g.
What is it made from?
Anodized aluminum housing, polycarbonate display cover.
What thread does it use?
M10x1.
What is its temperature range?
-10 to 60 C.
How does it connect?
1.25 mm 8-pin connector.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Subsea M10 7-Segment Display are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Subsea M10 7-Segment Display across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
