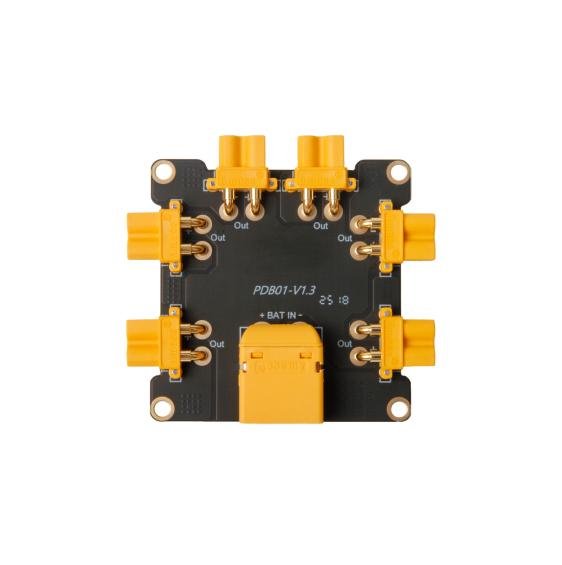

PDB 60A(With XT30 Pre- soldered)
Holybro PDB 60A distributes battery power to the connected aircraft loads. This version includes pre-soldered XT30 connectors. Choose the connector arrangement to suit the existing wiring.
Specifications
| Model | PDB 60A |
| Manufacturer | Holybro |
| Holybro SKU | 18069A |
| Product type | Power distribution board |
| Category | Power Modules & PDBs |
| Rated current | 60 A |
| Connectors | XT30 pre-soldered |
| Mounting pattern | 45 × 45 mm |
| Maximum current | 120 A for less than 60 seconds |
| Battery connection | Pre-soldered XT60 |
| XT30 connectors | Pre-soldered |
Figures above are Holybro published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Holybro's own listing (opens in a new tab).
Applications
Power distribution for builds using a separate power module such as PM02 or PM02D.
Compatible accessories
Holybro identifies PM02 and PM02D as suitable power modules. PM03, PM06 and PM07 already include power distribution. Confirm the exact module and wiring variant.
Selection guides
How to choose between the options in this category, and what to check before ordering.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
How is it mounted?
45 × 45 mm.
What is the manufacturer part number?
Holybro lists it as 18069A. Quote that number on an enquiry and we will match it exactly.
Can I get the datasheet and drawings?
Yes. The Holybro datasheet and any drawings we hold for the Holybro PDB 60A(With XT30 Pre- soldered) UAV Power Distribution Board are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Holybro distributor and supplies the Holybro PDB 60A(With XT30 Pre- soldered) UAV Power Distribution Board across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
More in Power Modules & PDBs
All Power Modules & PDBs in the catalogue →Goes with this
Other parts in this category. These are not alternatives to the part above — they are what it is installed alongside.
Get a quote for this product
Tell us the quantity and delivery location. We will confirm pricing, stock and lead time, and can help with the datasheet and compatibility.
Availability & support
Contact us for exact pricing, stock and lead time. Supplied and supported across India by Vebix Automation, an authorised Holybro distributor, with technical support through selection, integration and after delivery. The manufacturer datasheet for this product is available on request.
Compare power distribution boards
Manufacturer specifications for the parts this one is an alternative to, side by side. A dash means a figure is not listed in our catalogue, not zero. Check the exact variant and operating conditions before choosing.
| Product | Mounting pattern | Product type | Battery connection | Connectors | Maximum current |
|---|---|---|---|---|---|
| PDB 60A(With XT30 Pre- soldered) this page | 45 × 45 mm | Power distribution board | Pre-soldered XT60 | XT30 pre-soldered | 120 A for less than 60 seconds |
| PDB 60A(without XT30 Pre- soldered) | 45 × 45 mm | Power distribution board | Pre-soldered XT60 | XT30 not pre-soldered | 120 A for less than 60 seconds |
| PDB 300A - Side Entry | — | Power distribution board | — | — | — |
| PDB 300A - Top Entry | — | Power distribution board | — | — | — |
