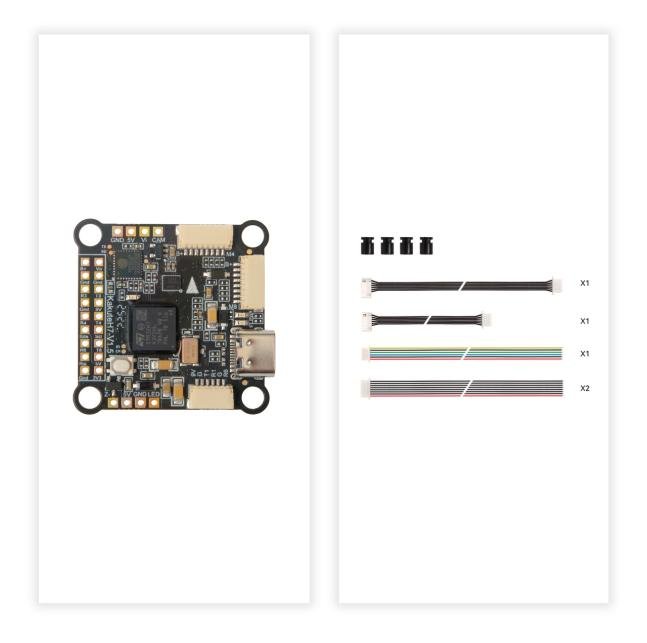

Kakute H7 V1.5 (ICM-42688-P) Flight Controller
Holybro Kakute H7 V1.5 (ICM-42688-P), from the Flight controller line. Sold in India by Vebix Automation, an authorised Holybro distributor.
Key specifications
- Processor
- H7
- IMU
- ICM-42688-P
Before you order: Check the mounting pattern, the firmware target the manufacturer supports and the UARTs you need.
- Part number
- 11091
- Type
- FPV flight controllers
- Manufacturer's range
- Holybro FPV flight controllers and ESCs (Kakute, Tekko32)
Includes GST and delivery in India
Imported to order. Lead time confirmed with your quotation.
Request a quotation from your cart. No payment is required to submit.
Specifications
| Manufacturer | Holybro |
| Holybro SKU | 11091 |
| Product type | Flight controller |
| Category | FPV Electronics |
| Processor | H7 |
| IMU | ICM-42688-P |
| Mounting pattern | 30.5 × 30.5 mm; 4 mm holes with 3 mm grommets |
| Firmware | KakuteH7 targets: Betaflight 4.5.2+, INAV 4.0.0+ (SD support 4.1.0+), ArduPilot 4.2.0+, PX4 1.13+.For the V1.5 revision. Supported firmware is not necessarily preinstalled. |
Price and supplied configuration
- SKU
11091- Price
- ₹15,372.95
Prices are in rupees. Includes GST and delivery in India. Delivery and returns
Documentation
Checked against the manufacturer's published figures: holybro.com/…/kakute-h7 (opens in a new tab) (read 26 September 2026).
Questions buyers ask
Where is the datasheet?
The manufacturer's own page for this part is linked under Documentation on this page; its datasheet and downloads, where the manufacturer publishes them, are there. We also send the datasheet and any drawings with your quotation.
Can I return it?
Yes, within 30 days of delivery, if it is unused and in its original packaging. You pay the return shipping, and we refund 90% of the price after checking the part.
Compare with other FPV flight controllers
The manufacturers’ figures for this part and the ones most like it, on the rows they publish. — Not specified
| Product | Processor | Mounting pattern | Firmware | IMU |
|---|---|---|---|---|
| Kakute H7 V1.5 (ICM-42688-P) this page | H7 | 30.5 × 30.5 mm; 4 mm holes with 3 mm grommets | KakuteH7 targets: Betaflight 4.5.2+, INAV 4.0.0+ (SD support 4.1.0+), ArduPilot 4.2.0+, PX4 1.13+. | ICM-42688-P |
| Kakute H7 V1.5 (ICM-42688-P) w/o Bluetooth | H7 | 30.5 × 30.5 mm; 4 mm holes with 3 mm grommets | KakuteH7 targets: Betaflight 4.5.2+, INAV 4.0.0+ (SD support 4.1.0+), ArduPilot 4.2.0+, PX4 1.13+. | ICM-42688-P |
| H7 MINI ICM FC | H7 | 20 × 20 mm | ArduPilot documents support for T-Motor H7 Mini; select its exact board target and supported gyro revision. | Not specified |
| Kakute F405-Wing Mini | F405 | 20 × 20 mm; M2 holes. | ArduPilot Kakute F405-Wing 4.5.2+; INAV Kakute F405 Wing Mini 7.1.2+; Betaflight Kakute F405 Wing Mini 4.5.6+. | Not specified |
| Kakute H743-Wing | H743 | 25 × 25 mm; M2 holes. | ArduPilot KAKUTEH7-Wing 4.4+; INAV KAKUTEH7Wing 6.1.1+. | Not specified |
| H7 MINI BMI FC | H7 | 20 × 20 mm | ArduPilot documents support for T-Motor H7 Mini; select its exact board target and supported gyro revision. | Not specified |
