Bulkhead Pressure Testing Tube
A transparent acrylic hydrostatic test fixture for evaluating the sealing performance of threaded subsea components. Test samples are installed at both threaded ends, the assembly is pressurized inside a compatible test chamber, and the clear body allows visual inspection for water ingress afterward.
Specifications
| Product type | Pressure test fixture |
| Material | Transparent acrylic, single-piece body |
| Weight | 52 g (short); 142 g (long) |
| Rated Depth | 10 MPa / 1,000 m |
| Max Pressure Reference | 12 MPa |

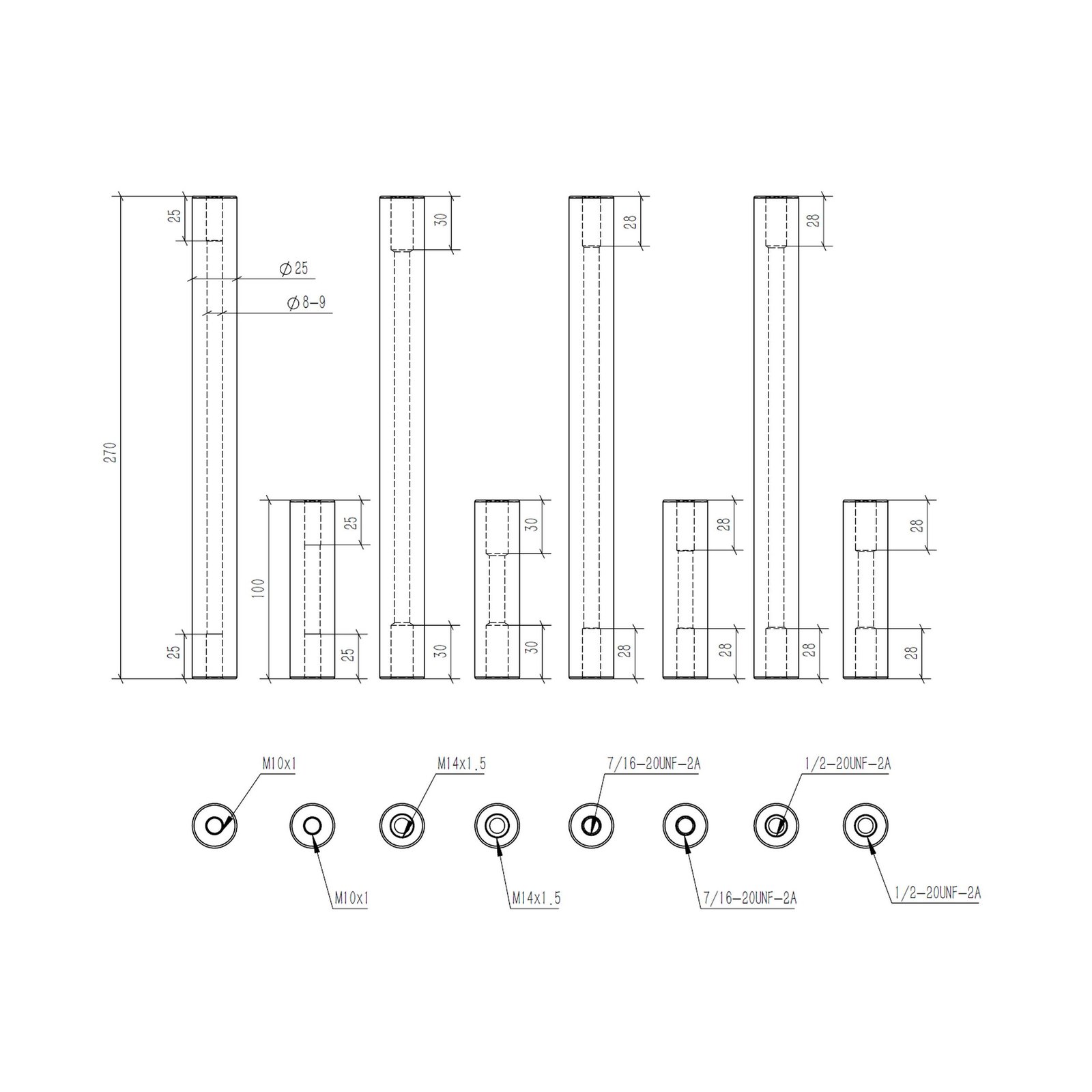

| Length Options | Short (100 mm) or Long (270 mm) |
| Thread Options | M10x1, M14x1.5, 7/16-20 UNF, 1/2-20 UNF |
Figures above are Blu-Sub Mechatronics published specifications as held in the Vebix Automation catalogue. Hardware revisions change them, so confirm them against the datasheet for the exact part number quoted. The manufacturer's full specification is at Blu-Sub Mechatronics's own listing (opens in a new tab).
Applications
Testing threaded bulkhead components, cable penetrators, connectors, blanking plugs, and seals for R&D, QA, and production screening. Not to be exposed to alcohol or alcohol derivatives (risk of cracking).
Compatible accessories
Water Pressure Testing Chamber (10 MPa/20L Stainless Steel), or a customer-supplied compatible test chamber.
Selection guides
How to choose between the options in this category, and what to check before ordering.
Manufacturer reference
View manufacturer specifications and documentation (opens in a new tab). Check the exact variant and document revision when specifying this part.
Common questions
How much does it weigh?
52 g (short); 142 g (long).
What is it made from?
Transparent acrylic, single-piece body.
Can I get the datasheet and drawings?
Yes. The Blu-Sub Mechatronics datasheet and any drawings we hold for the Blu-Sub Bulkhead Pressure Testing Tube Fixture are sent on request -- ask for them with your enquiry and we will attach them to the reply.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor and supplies the Blu-Sub Bulkhead Pressure Testing Tube Fixture across India from Pune. Pricing, stock, lead time and the manufacturer datasheet are confirmed on enquiry.
