Holybro

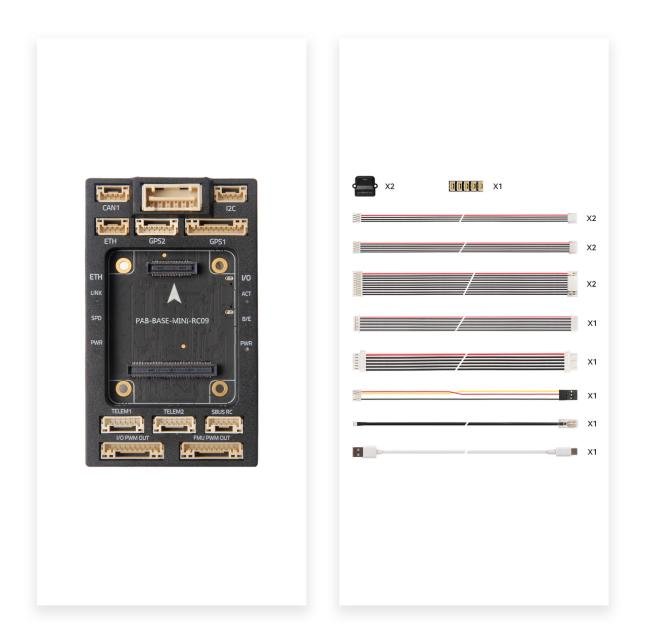

Pixhawk Mini Baseboard

SKU 18074

Holybro Pixhawk Mini Baseboard carries a Pixhawk compute module in a smaller footprint than the standard baseboards, for airframes that cannot give the electronics bay to a full-size board. Holybro lists it for the 5X, 6X, 6X-RT and 6X Pro modules.

Key specifications

Power ports
1
GPS ports
2
CAN ports
1
All specifications

Before you order: Check that it is made for your flight-controller module and has the ports you need.

Part number
18074
Category
Drone flight controllers and autopilots
Type
Autopilot baseboards
Manufacturer's range
Holybro Pixhawk autopilots and baseboards
₹19,204.64

Includes GST and delivery in India

Imported to order. Lead time confirmed with your quotation.

Request quote for this item

Request a quotation from your cart. No payment is required to submit.

Specifications

ModelPixhawk Mini Baseboard
ManufacturerHolybro
Holybro SKU18074
Product typeBaseboard
Product linePixhawk baseboards for 5X, 6X, 6X-RT and 6X Pro
CategoryAutopilot Flight Controllers
Takes modulesPixhawk 5X, Pixhawk 6X, Modules following the Pixhawk Autopilot Bus standard
Telemetry ports2
GPS ports2
I2C ports1
CAN ports1
Ethernet ports1
Other connectionsDSM, RC, MAIN, AUX
Power ports1
Power sensingDigital I2C
Dimensions and massNot published for this exact carrier revision. Ask us for the drawing before designing a mounting.
Companion computerNot on this board
Part number18074

Price and supplied configuration

SKU
18074
Price
₹19,204.64

Prices are in rupees. Includes GST and delivery in India. Delivery and returns

What else you need

A flight-controller module

A baseboard does not fly anything by itself. Holybro lists it for: Pixhawk 5X, Pixhawk 6X, Modules following the Pixhawk Autopilot Bus standard.

Source: Holybro's specification: the modules this baseboard takes.

Accessories and compatibility

Compatible accessories

Named by the manufacturer for this part.

Used for

  • Compact airframes carrying a modular Pixhawk where a standard baseboard will not fit

The manufacturer lists: Pixhawk 6X and 6X Pro compute modules. Check the mounting pattern and connector faces against the electronics bay, including cable bend radius.

Questions buyers ask

Where is the datasheet?

Under Documentation on this page there is a link that searches the manufacturer's site for this part number, where its datasheet and documentation are published. We also send the datasheet and any drawings with your quotation.

Can I return it?

Yes, within 30 days of delivery, if it is unused and in its original packaging. You pay the return shipping, and we refund 90% of the price after checking the part.

Compare with other autopilot baseboards

The manufacturers’ figures for this part and the ones most like it, on the rows they publish. — Not specified

ProductTakes modulesDimensions and massPart numberGPS portsCAN ports
Pixhawk Mini Baseboard this pagePixhawk 5X, Pixhawk 6X, Modules following the Pixhawk Autopilot Bus standardNot published for this exact carrier revision. Ask us for the drawing before designing a mounting.1807421
Pix32 V6 Mini BaseboardPix32 v6Not published for this exact carrier revision. Ask us for the drawing before designing a mounting.18057Not specifiedNot specified
Pixhawk Standard Baseboard V2APixhawk 5X, Pixhawk 6X, and modules following the Pixhawk Autopilot Bus standardNot published for this exact carrier revision. Ask us for the drawing before designing a mounting.1811722
Pixhawk Standard Baseboard V2BPixhawk 5X, Pixhawk 6X, and modules following the Pixhawk Autopilot Bus standardNot published for this exact carrier revision. Ask us for the drawing before designing a mounting.1812522
Pix32 V6 Standard BaseboardPix32 v6Not published for this exact carrier revision. Ask us for the drawing before designing a mounting.1808222
